Install front crankshaft radial seal - AR03.20-P-3000-01CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 in MODEL 117, 156, 176, 246

ENGINE 651 in MODEL 166

ENGINE 651 in MODEL 172

ENGINE 651 in MODEL 204

ENGINE 651 in MODEL 205

ENGINE 651 in MODEL 207

ENGINE 651 in MODEL 212

ENGINE 651 in MODEL 218

ENGINE 651 in MODEL 221

ENGINE 651 in MODEL 222

ENGINE 651 in MODEL 253

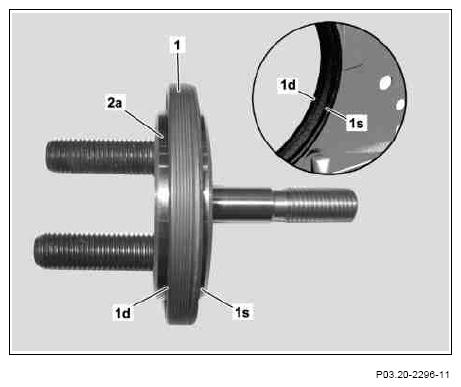

Fig 1: Identifying Insertion Tool (651 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Push radial shaft sealing ring (1) from the right, as shown, onto the insertion tool (2a).
The sealing lip (1d) and the protective lip (1s) of the radial shaft sealing ring (1) must point to the left. Place radial shaft sealing ring (1) again if this is not the case.

The radial shaft sealing ring (1) and the contact surface on crankshaft journal must be free of oil and grease. Grease prevents the inclined webs on sealing lip (1d) transporting back the engine oil.

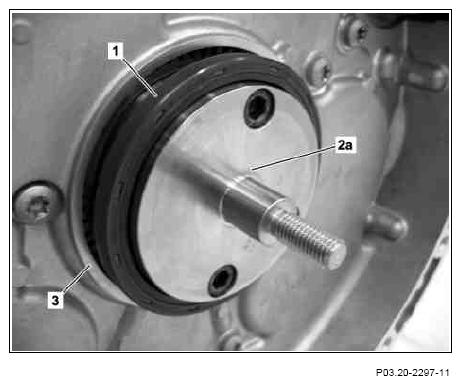

Fig 2: Radial Shaft Sealing Ring And Protective Lip
Courtesy of MERCEDES-BENZ USA
Check sealing surface for the radial shaft sealing ring (1) on end cover (3) for ridging.
Deburr sealing surface if necessary.
Place insertion device (2a) on the crankshaft and tighten down with the two screw/bolts.

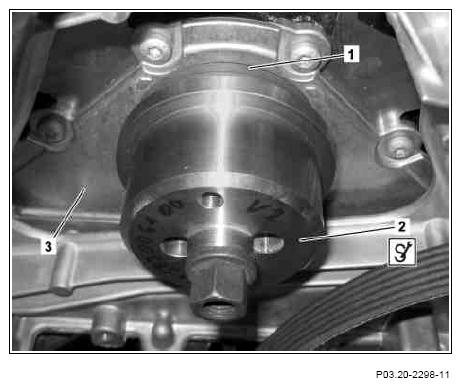

Fig 3: Radial Shaft Sealing Ring, End Cover And Insertion Device
Courtesy of MERCEDES-BENZ USA
Place insertion device (2) on the insertion device (2a) and screw on nut.
Align bores in insertion device (2) to the screw/bolts of the insertion device (2a).
Install radial shaft sealing ring (1) using insertion device (2).
Screw on nut further and pull in radial shaft sealing ring (1) until the insertion device (2) lies on the end cover (3).
The radial shaft sealing ring (1) must be flush touching the end cover (3).

There will be no perfect sealing achieved otherwise.

Ensure that radial shaft sealing ring (1) has been pulled in equally over the whole circumference.
Remove screw/bolts for insertion device (2a) alternately out of the crankshaft and remove insertion device (2).

Fig 4: Radial Shaft Sealing Ring And End Cover
Courtesy of MERCEDES-BENZ USA
