Remove/install tensioning rail - AR05.10-P-8127CO

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 204, 207, 212, 218, 222

Shown on engine 642.9

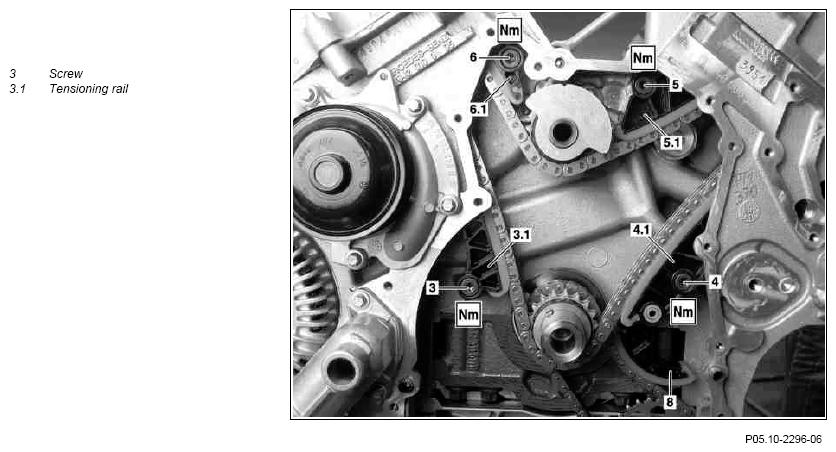

Fig 1: Tensioning Rail Remove/Install Components - Shown On Engine 642.9

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
1	Remove engine cover	Ensure correct seating of the engine cover.
2	Remove cover for belt drive	ENGINE 642 in MODEL 207, 212, 218
3	Remove poly-V belt	ENGINE 642 in MODEL 222	AR13.20-P-0001LFD
		ENGINE 642 in MODEL 204	AR13.22-P-1202CO
		ENGINE 642 in MODEL 207, 212, 218	AR13.20-P-0001OGE
4	Remove poly-V belt tensioning device	ENGINE 642 in MODEL 222	AR13.20-P-0001LFD
		ENGINE 642 in MODEL 204	AR13.25-P-3200CO
		ENGINE 642 in MODEL 207, 212, 218	AR13.20-P-0001OGE
5	Remove timing case cover	ENGINE 642 in MODEL 222	AR01.40-P-8000LFD
		ENGINE 642 in MODEL 204	AR01.40-P-8000CO
		ENGINE 642 in MODEL 207, 212, 218	AR01.40-P-8000SXI
6	Remove chain tensioner	ENGINE 642 in MODEL 204	AR05.10-P-7800CO
		ENGINE 642 in MODEL 207, 212, 218, 222	AR05.10-P-7800SXI
7	Unscrew bolt (3) of tensioning rail (3.1)	Bearing pin for tensioning rail	*BA05.10-P-1003-01L
8	Pull out tensioning rail (3.1) from the bottom
9	Install in the reverse order
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
10	Check engine for leaktightness

TIMING CHAIN, CHAIN TENSIONER

Number	Designation		ENGINE 642
BA05.10-P-1003-01L	Bearing pin for tensioning rail	Nm	12
