Remove/install detachable parts when replacing windshield - AR67.10-P-1050EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212

Shown on model 212.0 with code (413) Panoramic glass sunroof with top sliding sunroof

Fig 1: Detachable Parts Windshield Remove/Install Components - Shown On Model 212.0 With Code (413)

Courtesy of MERCEDES-BENZ USA

Shown on model 212.0 without code (413) Panoramic glass sunroof with top sliding sunroof

Fig 2: Detachable Parts Windshield Remove/Install Components - Shown On Model 212.0 Without Code 413 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 3: Detachable Parts Windshield Remove/Install Components - Shown On Model 212.0 Without Code 413 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install

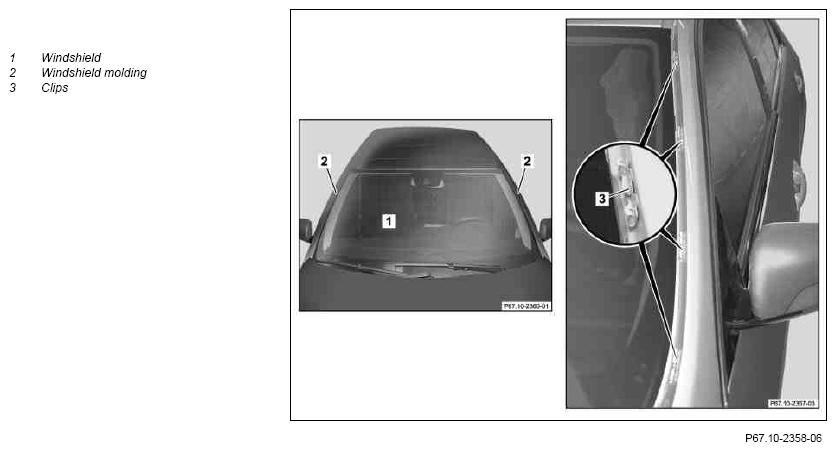

1.1	Unclip left and right trim frame (2) from top to bottom and remove	With code (413) Panoramic glass roof with top sliding roof Ensure that trim frame (2) is seated correctly in clips (3).
1.1		Long wedge	Figure

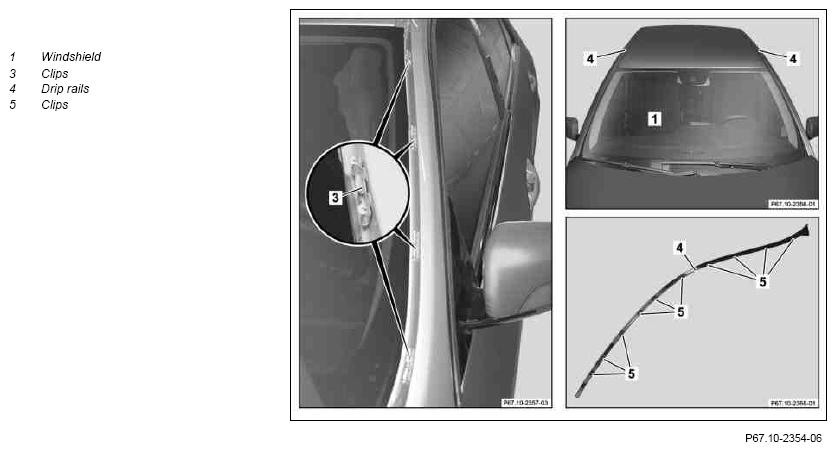

1.2	Unclip left and right drip rail (4) from rear toward front and remove	Except code (413) Panoramic glass roof with top sliding roof Ensure that the corresponding drip rail (4) is correctly in the clips (3). Ensure that clips (5) are seated correctly on roof paneling.
1.2		Long wedge	Figure

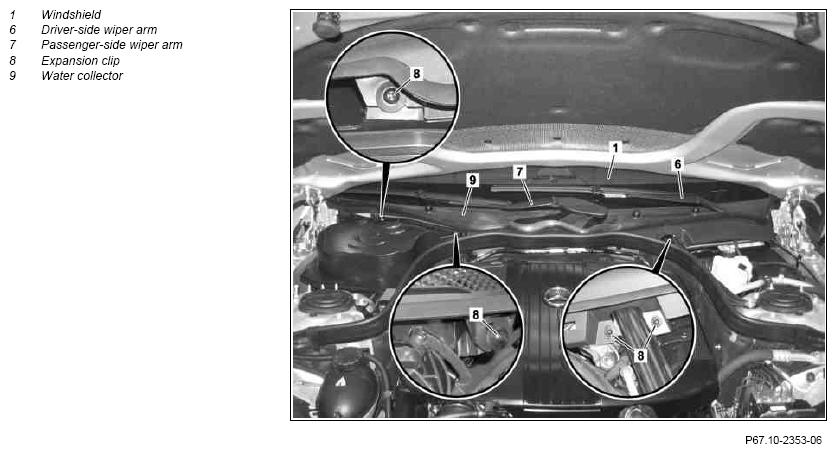

2	Remove driver-side wiper arm (6) and passenger-side wiper arm (7)		AR82.30-P-6100CW
3	Remove expansion clip (8) and unclip water collector (9) from windshield (1)
4	Place water collector (9) with connected lines to side
5	Disconnect electrical connector from window heater
6	Loosen inside rearview mirror and allow electrical lines to hang down
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
7	Remove multifunction camera (A40/11)	with code (610) night view assist On vehicles with code (610) Night view assist, recalibrate multifunction camera.
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
8	Disconnect electrical connectors from rain/light sensor (B38/2)	When installing a new windshield (1), remove rain/light sensor and install on new windshield (1). See: ↓
		Remove/install rain/light sensor	AR82.30-P-7800CW
9	Install in the reverse order

Fig 4: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
