Remove and install wiper arm - AR82.30-P-6100CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 207, 212, 218

MODIFICATION NOTES

17.4.14 New picture inserted Picture number P82.30-3209-08
17.4.14 Specialist note inserted AS 4.2 factual information inserted

Model 204.0/2, 207, 212.0/2, 218, shown on model 204.0

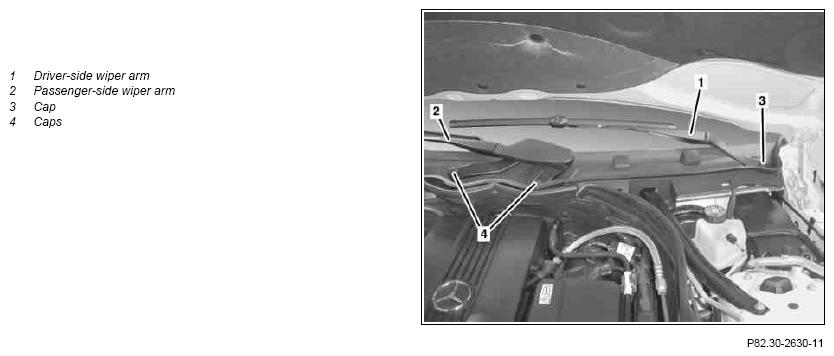

Fig 1: Wiper Arm Remove/Install Components - Shown On Model 204.0
G09977593Courtesy of MERCEDES-BENZ USA

Model 204.9

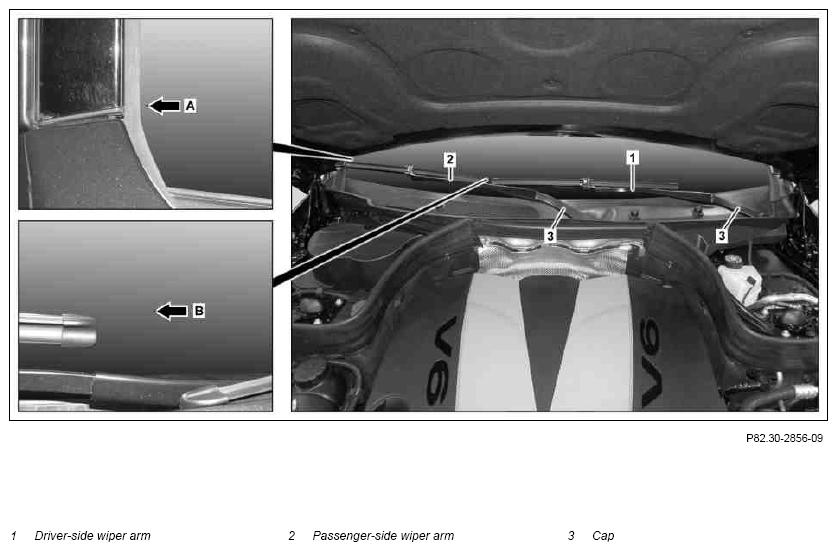

Fig 2: Wiper Arm Remove/Install Components - Shown On Model 204.9
G09977594Courtesy of MERCEDES-BENZ USA

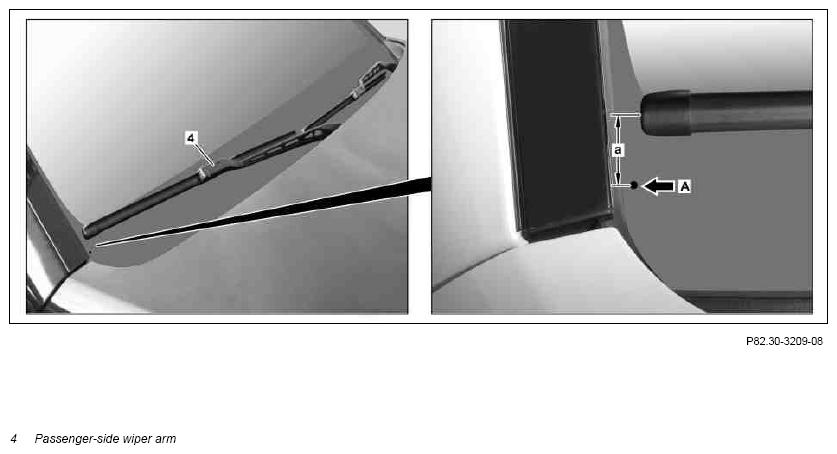

Fig 3: Wiper Arm Remove/Install Components
G09977595Courtesy of MERCEDES-BENZ USA
DANGER Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. Always remove ignition key when working on windshield wiper mechanism. AS82.30-Z-0001-01A
REMOVINGINSTALLING Remove/install
1 Bring wiper system into park position
2.1 Switch off ignition and remove transmitter key from ignition lock MODEL 204, 207, 212, 218
without CODE 889 (KEYLESS-GO)
2.2 Switch off ignition, remove KEYLESS-GO start/stop button from electronic ignition lock control unit MODEL 204, 207, 212, 218
with CODE 889 (KEYLESS-GO)
5 Remove cap (3), unscrew nut and detach driver-side wiper arm (1) IMPORTANT MODEL 204, 207
Installation:  Position tip of wiper blade on driver-side wiper arm (1) onto assembly marking (arrow B) in the windshield's silk-screen print.
IMPORTANT MODEL 212, 218
Installation:  Position tip of wiper blade on driver-side wiper arm (1) 60 mm above the water collector.
    TORQUE SPECIFICATION Nut to wiper arm *BA82.30-P-1001-01M
    SPECIAL TOOL Puller Fig 4
    SPECIAL TOOL Thrust washer M 10x1.5 Fig 5
6.1 Detach caps (4), unscrew nuts and remove passenger-side wiper arm (2) MODEL 204.0/2, 207, 212, 218
INSTALLATION IMPORTANT Position front passenger side wiper blade (2) onto assembly marking in windshield's silk-screen print.
    TORQUE SPECIFICATION Nut to wiper arm *BA82.30-P-1001-01M
    SPECIAL TOOL Puller Fig 4
    SPECIAL TOOL Thrust washer M 10x1.5 Fig 5
6.2 Remove cap (3), unscrew nut and remove passenger-side wiper arm (2) MODEL 204.9
IMPORTANT MODEL 204.9 up to 1/31/14
Installation:  Position front passenger side wiper blade (2) onto assembly marking (arrow A) in windshield's silk-screen print.
IMPORTANT MODEL 204.9 as of 2/1/14
Installation:  Position front passenger side wiper blade (4) approx. 21 mm (space a) over the assembly marking (arrow A) in the windshield's silk-screen print.
    TORQUE SPECIFICATION Nut to wiper arm *BA82.30-P-1001-01M
    SPECIAL TOOL Puller Fig 4
    SPECIAL TOOL Thrust washer M 10x1.5 Fig 5
7 Install in the reverse order
WINDSHIELD WIPER

Number Designation MODEL 204 MODEL 207
BA82.30-P-1001-01M Nut to wiper arm Nm 30 30
WINDSHIELD WIPER

Number Designation MODEL 212 MODEL 218
BA82.30-P-1001-01M Nut to wiper arm Nm 30 30
Fig 4: Identifying Puller (201 589 14 33 00)
G09977596Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Thrust Washer M 10X1.5 (210 589 04 63 00)
G09977597Courtesy of MERCEDES-BENZ USA
