Disassemble/assemble front bumper - AR88.20-P-2050EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014
Shown with CODE 954 (AVANTGARDE)
| Disassemble/assemble | |||

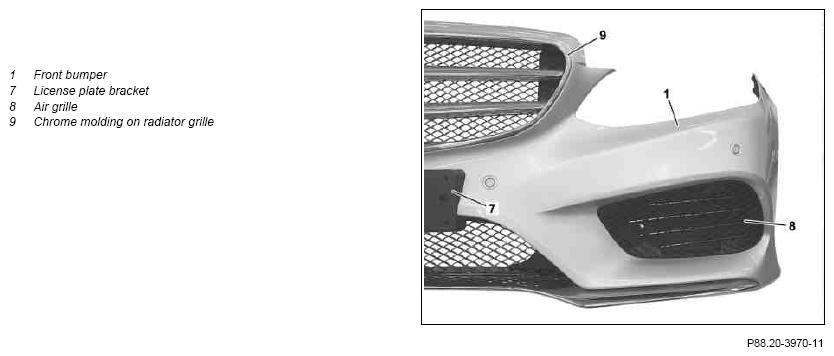

| 1 | Remove front bumper (1) | AR88.20-P-2000EWM | |
| 2 | Remove license plate bracket (7) | ||
| 3 | Remove air grille (8) | ||
| 4 | Remove chrome molding on radiator grille (9) from radiator grille | Figure | |

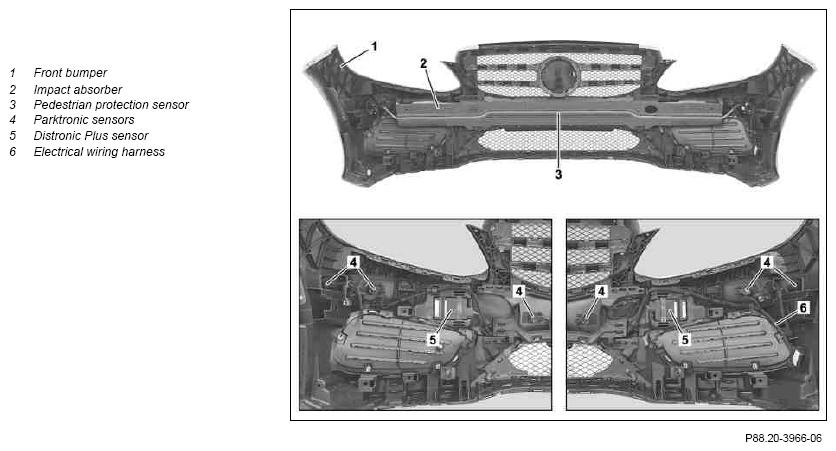

| 5 | Remove pedestrian protection sensors (3) | With CODE U60 (Pedestrian protection) | AR91.60-P-0950EWM |
| 6 | Remove impact absorber (2) | ||
| General information on the impact absorber | AH88.20-P-1000-01A | ||
| 7 | Drill out blind rivets (11) and remove center basic carrier (10) | Rechargeable screwdriver, rechargeable drill | |
| Figure | |||
| 8 | Remove Parktronic sensors (4) with electrical wiring harness (6) | With CODE 220 (PARKTRONIC) with CODE 230 (Exclusive parking assist) | |
| AR54.65-P-0001EW | |||
| 9 | Remove Distronic Plus sensors (5) with electrical wiring harness (6) | With CODE 233 (DISTRONIC PLUS) |
|

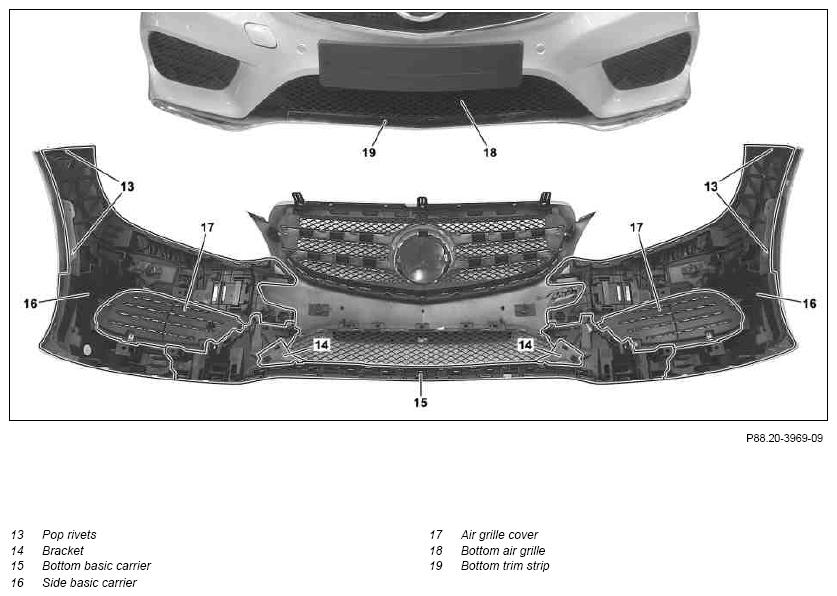

| 10 | Drill out blind rivets (13) and remove bracket (14), bottom basic carrier (15) and side basic carrier (16) | Rechargeable screwdriver, rechargeable drill | |
| Figure | |||
| 11 | Remove air grille covers (17) and bottom air grille (18) | Figure | |
| 12 | Remove bottom trip strips (19) | Figure | |
| 13 | Remove sealing lip (12) | ||

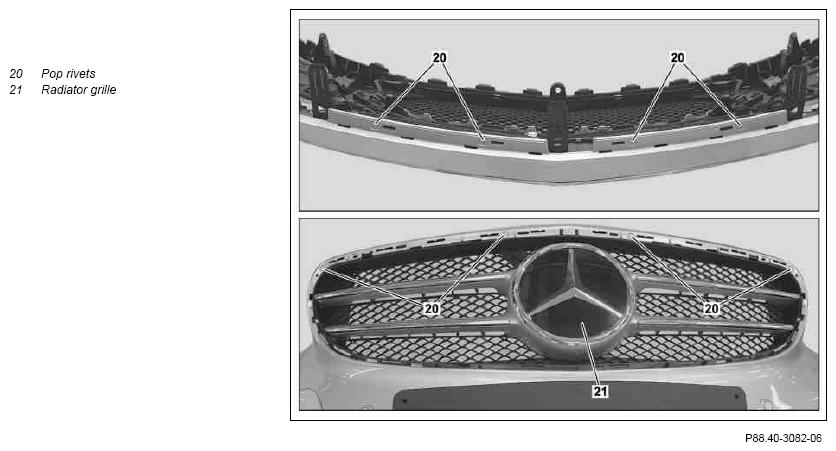

| 14 | Drill out blind rivets (20) and remove radiator grille (21) toward rear | Rechargeable screwdriver, rechargeable drill | |
| Figure | |||
| 15 | Assemble in the reverse order | ||
| Check | |||
| 16 | Check whether PARKTRONIC or active parking assist is ready for operation |
