Remove/install front carrier - AR88.20-P-2249EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014
| Remove | |||

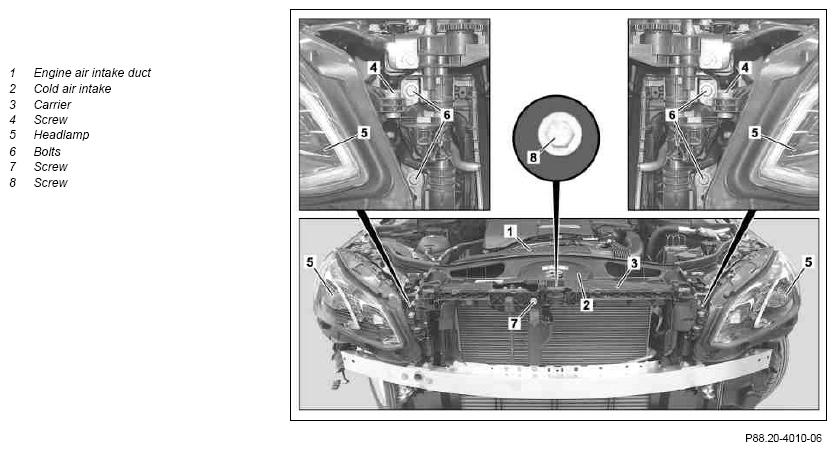

| 1 | Remove front bumper | AR88.20-P-2000EWM | |
| 2 | Remove engine air intake duct (1) | ||
| 3 | Detach cold air intake (2) and fold toward rear | ||
| 4 | Detach headlamp (5) | AR82.10-P-4730EWM | |
| 5 | Remove screw/bolts (6) | ||
| 6 | Remove screw/bolt (7) | ||
| 7 | Loosen bolt (8) | ||
| 8 | Remove carrier (3) | ||
| Install | |||
| 9 | Install carrier (3) | ||

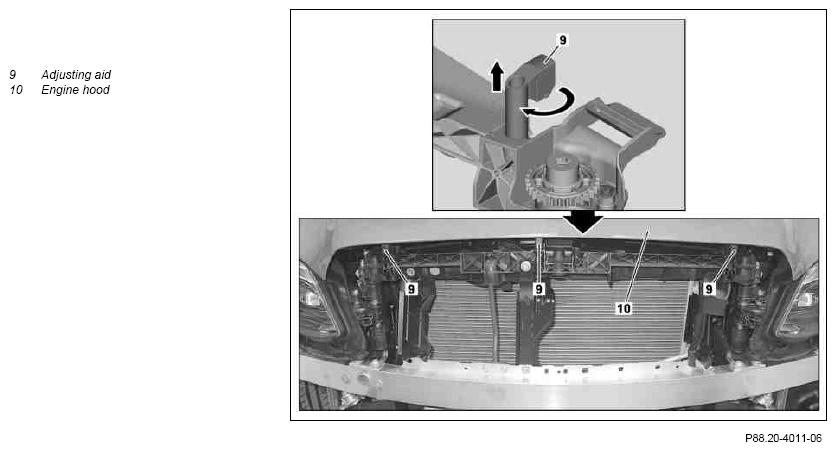

| 10 | Pull adjustment aid (9) upward and turn clockwise 180° (arrow) until adjustment aid (9) arrests | ||
| 11 | Close engine hood (10) | ||
| 12 | Lift carrier (3) until adjustment aid (9) makes contact with engine hood (10) | ||
| 13 | Tighten bolts (6, 7, 8) | ||
| 14 | Open engine hood (10) | ||
| 15 | Turn adjustment back (9) and arrest in carrier (3) | ||
| 16 | Install cold air intake (2) | ||
| 17 | Install engine intake air duct (1) | ||
| 18 | Fasten headlamp (5) | AR82.10-P-4730EWM | |
| 19 | Install front bumper | AR88.20-P-2000EWM |
