Remove, install trunk lid opening angle detection sensor - AR88.50-P-5065EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1 with CODE 881 (Remote trunk closing (RTC [HDFS]))
Shown on vehicles with CODE (810) Sound system

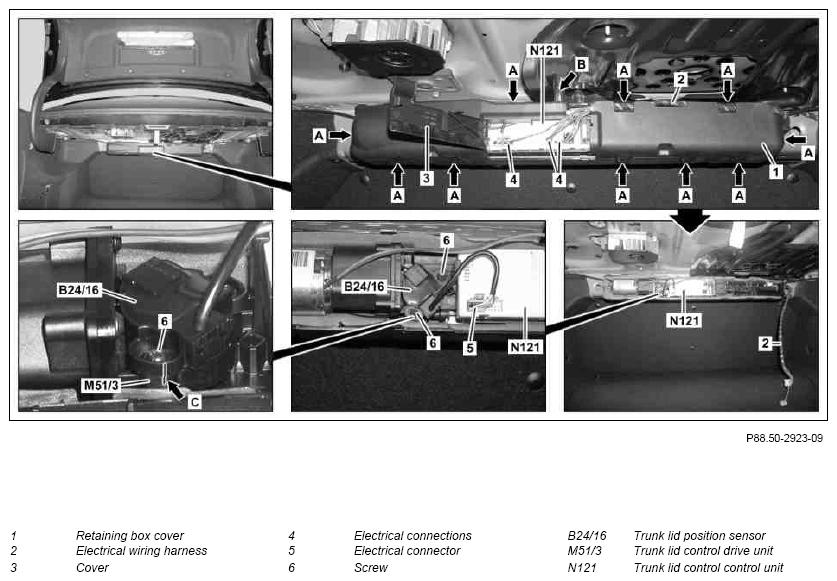

Fig 1: Trunk Lid Opening Angle Detection Sensor Remove/Install Components - Shown On Vehicles With Code (810)
Vehicle without CODE (810) Sound system

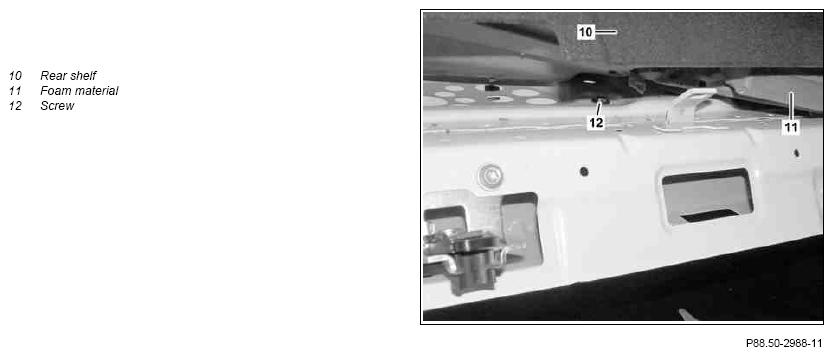

Fig 2: Trunk Lid Opening Angle Detection Sensor Remove/Install Components - Shown On Vehicles Without Code (810)
| Remove | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| 1 | Connect STAR DIAGNOSIS and open trunk lid to stop with diagnosis assistance system (DAS) | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Remove stowage compartment below rear shelf | Remove, install stowage compartment below rear shelf | AR68.50-P-2000-01EW |
| 3 | Open cover (3), disconnect electrical connectors (4) and expose wiring harness (2) from retaining box cover (1) | ||
| 4 | Loosen rear shelf (10) and lift foam material (11) until bolt (12) is accessible | MODEL 212.0/1 with CODE 881 (Remote trunk closing (RTC [HDFS])) without CODE 810 (Sound system) |
AR68.30-P-4580EW |
| 5 | Loosen bolt on retaining box cover (1) | MODEL 212.0/1 with CODE 810 (Sound system) with CODE 881 (Remote trunk closing (RTC [HDFS])) Loosen remote trunk closing drive unit and fasten |
AR88.50-P-5086-01EW |
| MODEL 212.0/1 with CODE 881 (Remote trunk closing (RTC [HDFS])) without CODE 810 (Sound system) |
AR88.50-P-5086-01EWA | ||
| 6 | Unclip catch hooks (arrows A) on retaining box cover (1), guide retaining box cover (1) toward rear, unhook bolt (arrow B) from keyhole-shaped opening and remove retaining box cover (1) | ||
| 7 | Disconnect electrical connector (5) on trunk lid position sensor (B24/16) | ||
| 8 | Unscrew bolts (6) and remove trunk lid position sensor (B24/16) | ||
| Install | |||
| 9 | Align trunk lid position sensor (B24/16) with elongated hole in center in relation to screwing points on trunk lid control drive unit (M51/3) and insert | It is no longer permissible to remove the trunk lid position sensor (B24/16) when the catch is released. Otherwise replace. |
|
| 10 | Mark installation position of trunk lid position sensor (B24/16) in relation to trunk lid control drive unit (M51/3) (arrow C) | ||
| 11 | Tighten trunk lid position sensor (B24/16) with bolts (6) | It is not permissible to remove the trunk lid position sensor (B24/16) from the trunk lid control drive unit (M51/3). Otherwise replace. |
|
| 12 | Connect electrical connector (5) on trunk lid position sensor (B24/16) | ||
| 13 | Guide bolt (arrow B) on retaining box cover (1) into keyhole-shaped opening and clip catch hooks (arrows A) into retaining box cover (1) | ||
| 14 | Fasten bolt on retaining box cover (1) | MODEL 212.0/1 with CODE 810 (Sound system) with CODE 881 (Remote trunk closing (RTC [HDFS])) |
AR88.50-P-5086-01EW |
| Loosen remote trunk closing drive unit and fasten MODEL 212.0/1 with CODE 881 (Remote trunk closing (RTC [HDFS])) without CODE 810 (Sound system) |
AR88.50-P-5086-01EWA | ||
| 15 | Install rear shelf (10) | MODEL 212.0/1 with CODE 881 (Remote trunk closing (RTC [HDFS])) without CODE 810 (Sound system) |
AR68.30-P-4580EW |
| 16 | Route electrical wiring harness (2) into guide on retaining box cover (1) | ||
| 17 | Connect electrical connectors (4) on trunk lid control unit and close cover (3) | ||
| 18 | Install stowage compartment below rear shelf | Remove, install stowage compartment below rear shelf | AR68.50-P-2000-01EW |
| 19 | Normalize remote trunk closing | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
