Loosen remote trunk closing drive unit and fasten - AR88.50-P-5086-01EWA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 /1 with CODE (881) Remote trunk closing (RTC [HDFS]) except CODE (810) Sound system

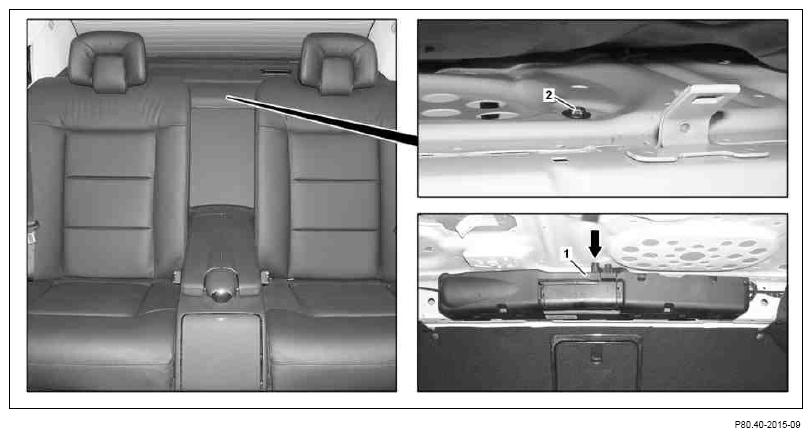

- Loosen bolt (2) on retaining box cover (1) on power closing unit.
The retaining box cover (1) can be guided out, with installed bolt (2), toward rear through the keyhole-shaped opening in the body (arrow).
- Fasten in reverse order
