Remove/install xenon headlamp control unit - AR82.10-P-4632EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207, 212 with CODE 615 (Bi-xenon headlamps with active light function)
MODEL 207, 212 with CODE 621 (Intelligent Light System (left-hand traffic))
MODEL 207, 212 with CODE 622 (Intelligent Light System)
MODEL 212 with CODE 614 (Bi-xenon headlamp unit)
MODEL 212 with CODE 616 (Bi-xenon headlamps w. headlamp cornering fct.)
MODEL 218 up to model year 2015 with CODE 614 (Bi-xenon headlamps for LHD vehicles)
MODEL 218 up to model year 2015 with CODE 618 (Bi-xenon headlamps f. left-side dr. traffic)

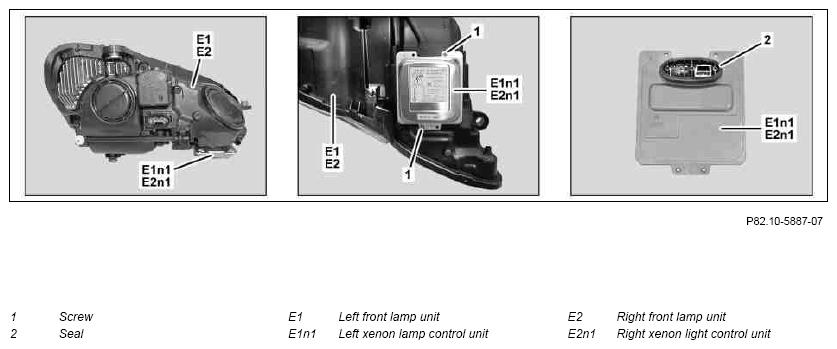

Shown on the left front lamp unit (E1)
| Risk of death due to high voltage in xenon headlamps. Risk of explosion /risk of fire caused by highly flammable materials in the vicinity of damaged xenon bulbs. Risk of injury caused by UV light, hot components at xenon headlamps and glass splinters produced by bursting xenon bulbs. Risk of poisoning caused by inhalation of mercury vapors and by toxic salts and mercury compounds being ingested or coming into contact with skin | Do not touch parts conducting high voltage. Persons with active electronic implants (e.g. cardiac pacemakers) must never work on xenon headlamps. Switch off the entire lighting system. Wear insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure sufficient ventilation in the working area. | AS82.10-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out initial startup of left xenon light control unit (E1n1) or right xenon light control unit (E2n1) | When replacing left xenon light control unit (E1n1) or right xenon light control unit (E2n1). | |
| AD00.00-P-2000-04A | |||
| 2.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 207, 212, 218 without CODE 889 (KEYLESS-GO) | |
| 2.2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 207, 212, 218 with CODE 889 (KEYLESS-GO) | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 3 | Lift vehicle on vehicle lift | ||
| 4 | Remove left or right front section of fender liner | AR88.10-P-1300ELX | |
| 5 | Unfasten washer fluid reservoir enough to gain access to left xenon light control unit (E1n1) and push it to side | MODEL 212 When removing left xenon light control unit (E1n1). |
|
| AR82.35-P-6000CW | |||
| 6 | Unfasten stationary heater unit enough to gain access to right xenon light control unit (E2n1) and tie it down to side | MODEL 212 with CODE 228 (Stationary heater) When removing right xenon light control unit (E2n1). |
|
| AR83.70-P-5302EW | |||
| 7 | Remove bolts (1) | ||
| 8 | Remove left xenon light control unit (E1n1) or right xenon light control unit (E2n1) | ||
| 9 | Install in the reverse order | ||
| 10 | Check adjustment of left front lamp unit (E1) and right front lamp unit (E2) and correct, if necessary | When replacing left xenon light control unit (E1n1) or right xenon light control unit (E2n1). | |
| AP82.10-P-8260EW |
