Remove/install windshield washer hose - AR82.35-P-6980CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218
Shown on model 204.0 with removed water collector (1)
Shown on model 204.0 with code (875) Heated windshield washer system
| Remove/install | |||
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities. | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| 1 | Remove both wiper arms | AR82.30-P-6100CW | |
| 2 | Remove water collector (1) | ||

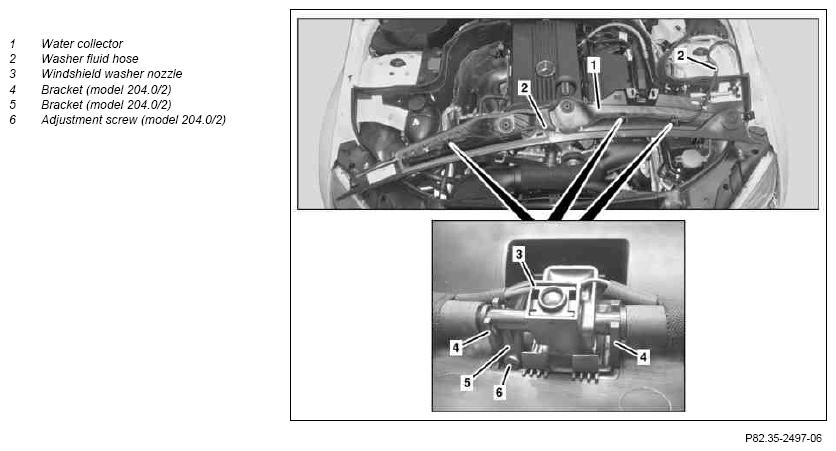

| 3 | Unclip windshield washer nozzles (3) from bracket (4) | Model 204.0/2 |
|
| 4 | Unclip windshield washer nozzles (3) from water collector (1) | Model 204.9, 207, 212, 218 | |
| 5 | Remove washer fluid hose (2) with windshield washer nozzle (3) from water collector (1) | ||
| 6 | Expose washer fluid hose (2) as far as left front lamp unit (E1) | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 7 | Lift vehicle on lifting platform. | ||
| 8 | Remove front section of fender liner in left front fender | ||
| 9 | Disconnect spray nozzle heater electrical connector (X88/11) | In vehicles with code (875) heated windshield washer system | |

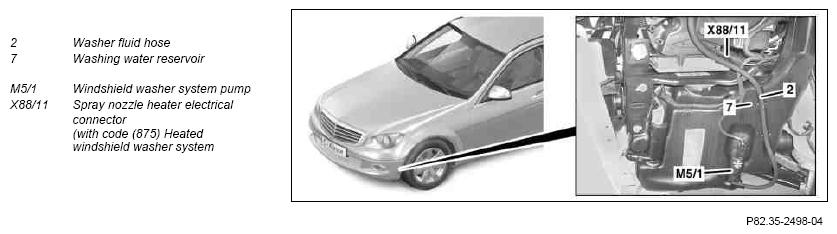

| 10 | Disconnect washer fluid hose (2) from windshield washer system pump (M5/1) | ||
| 11 | Expose washer fluid hose (2) and remove | ||
| 12 | Install in the reverse order | ||
| 13 | Correct fluid level of windshield washer system | Model 204 | AP82.35-P-8210CW |
| Model 207, 212, 218 | AP82.35-P-8210EW |
