Remove/install washer fluid reservoir heat exchanger - AR82.35-P-6006CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/3, 207, 212, 218 with CODE 875 (Heated windscreen washer system)

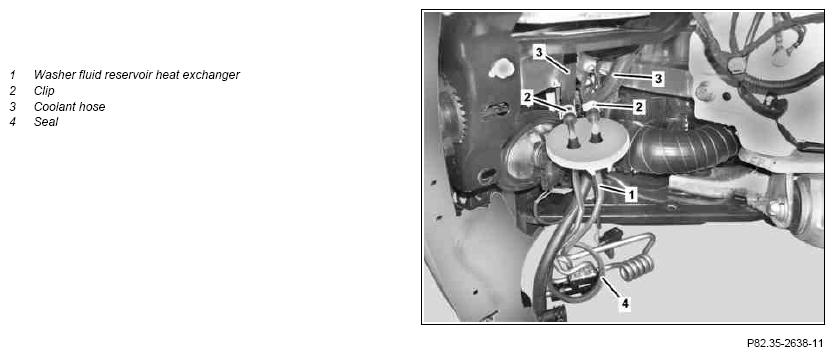

Shown on model 204.0
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove windshield washer fluid reservoir | If damage is present: ↓ Install new seal (4). |
AR82.35-P-6000CW |
| 2 | Clamp off coolant hoses (3) with clamping devices | Figure | |
| 3 | Detach clamps (2) on coolant hoses (3) | ||
| 4 | Detach coolant hoses (3) from washer fluid reservoir heat exchanger (1) | ||
| 5 | Install in the reverse order | ||
| 6 | Check cooling circuit for leaktightness | MODEL 204 (except 204.9) with ENGINE 156, 271, 272, 274, 276, 642, 646, 651 with CODE 875 (Heated windscreen washer system) MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278, 642, 651 with CODE 875 (Heated windscreen washer system) MODEL 212 with ENGINE 156, 157, 271, 272, 273, 274, 276, 278, 642, 651 with CODE 875 (Heated windscreen washer system) MODEL 218 with ENGINE 157, 274, 276, 278, 642, 651 with CODE 875 (Heated windscreen washer system) |
|
| MODEL 204 (except 204.9) with ENGINE 274 with CODE 875 (Heated windscreen washer system) MODEL 207 with ENGINE 274 with CODE 875 (Heated windscreen washer system) MODEL 212 with ENGINE 274 with CODE 875 (Heated windscreen washer system) |
AR20.00-P-1010MR | ||
| MODEL 204 (except 204.9) with ENGINE 276 with CODE 875 (Heated windscreen washer system) MODEL 207 with ENGINE 276, 278 with CODE 875 (Heated windscreen washer system) |
AR20.00-P-1010FH | ||
| MODEL 204 (except 204.9), 212 with ENGINE 156 with CODE 875 (Heated windscreen washer system) |
AR20.00-P-1010CMG | ||
| MODEL 204 (except 204.9) with ENGINE 271, 272, 642, 646, 651 with CODE 875 (Heated windscreen washer system) MODEL 207 with ENGINE 271, 272, 273, 642, 651 with CODE 875 (Heated windscreen washer system) MODEL 212 with ENGINE 271 with CODE 875 (Heated windscreen washer system) |
AR20.00-P-1010CW | ||
| MODEL 212 with ENGINE 272, 273 with CODE 875 (Heated windscreen washer system) |
AR20.00-P-1010EW | ||
| MODEL 212, 218 with ENGINE 157, 276, 278 with CODE 875 (Heated windscreen washer system) |
AR20.00-P-1010EL | ||
| MODEL 212, 218 with ENGINE 642, 651 with CODE 875 (Heated windscreen washer system) |
AR20.00-P-1010OMA |
