Remove/install loudspeakers in rear doors - AR82.62-P-7874EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/9, 212
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Risk of injury due to hands being crushed when window glass is not secure | Secure window to prevent it from falling down. | AS67.00-Z-0002-01A | |
| 1 | Remove door lining | AR72.12-P-1010CW | |
| 2.1 | Remove door module (16) | Model 204.0/2/9, model 212.0 except code (Z04) Light armoring, model 212.1/2 | AR72.12-P-0103CW |
| 2.2 | Remove inner door panel (16) | Model 212 with code (Z04) Light armoring, with code (Z13) Left rear power window with special protection, with code (Z14) Right rear power window with special protection Model 212 with code (Z04) Light armoring, without code (Z13) Left rear power window with special protection, without code (Z14) Right rear power window with special protection |
AR72.12-P-0104EG |
| 3 | Cut off rivet heads of hollow rivets (18) | A bent door module or inner door panel (16) must be replaced. |
|

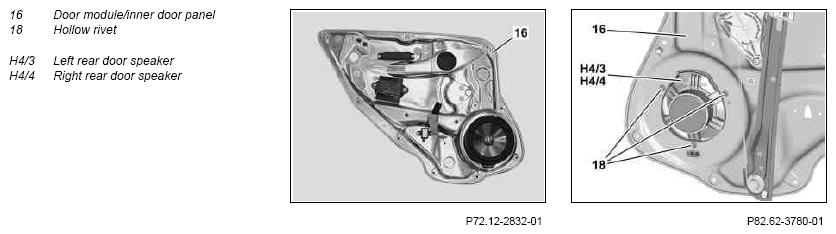

| Fig 2 | |||
| Fig 3 | |||
| Rechargeable drill/screwdriver Hand riveting tool |
|||
| 4 | Remove left or right rear door speaker (H4/3, H4/4) from door module or inner door panel (16) | ||
| 5 | Press out any leftover rivet remains at the door module or inner door panel (16) | Fig 4 | |
| 6 | Install in the reverse order |
