Remove/install NOx sensor - AR07.70-P-0001EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 276 in MODEL 212, 218

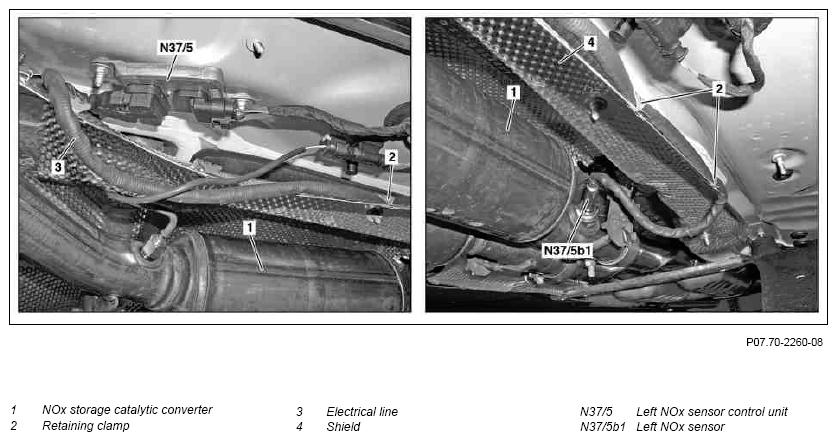

Shown on left NOx storage catalytic converter
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on vehicle lift. | ||
| 2 | Detach underfloor paneling in the area of the shield (4) | ||
| 3 | Disconnect electrical line (3) on NOx sensor control unit (N37/5 or N37/6) | ||
| 4 | Unclip electrical line (3) at mount shield (4) | ||
| 5 | Remove NOx sensor (N37/5b1 or N37/6b1) from NOx storage catalytic converter (1) | ||
| *BA07.04-P-1001-01E | |||
| Paste, hot lubrication 1 kg, DB supply specification 6879.20 | *BR00.45-Z-1005-06A | ||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory with STAR DIAGNOSIS and erase if necessary | Only when replacing | AD00.00-P-2000-04A |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Carry out an engine test run and test exhaust system for leaks in the process |
NOx SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA07.04-P-1001-01E | NOx sensor on exhaust pipe | Nm | 60 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DB supply specification 6879.20 | A 000 989 76 51 |
