Remove/install throttle valve actuator - AR07.51-P-1401ELS
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.8 in MODEL 207, 212, 218
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove engine cover | ||
| 2 | Detach charge air pipes on ATL | AR09.41-P-8620ELS | |

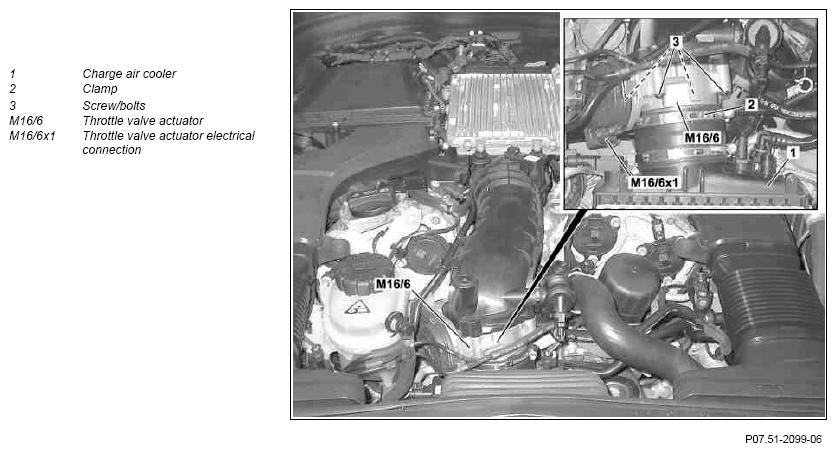

| 3 | Unfasten clamp (2) from charge air cooler (1) at throttle valve actuator (M16/6) | ||
| 4 | Remove diagonal struts upstream of charge air cooler (1) | ENGINE 276.8 in MODEL 207.462/465 | |
| *BA33.10-P-1004-01M | |||
| 5 | Detach charge air cooler (1) and pull to the front with attached coolant hoses | AR09.41-P-6819ELS | |
| 6 | Disconnect electrical connection (M16/6x1) on throttle valve actuator (M16/6) | ||
| 7 | Remove screw/bolt (3) | *BA09.20-P-1004-01T | |
| 8 | Take throttle valve actuator (M16/6) out of the engine compartment | ||
| 9 | Install in the reverse order | ||
| 10 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04A | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
INTAKE MANIFOLD
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA09.20-P-1004-01T | Bolt, air duct housing and throttle valve actuator to air intake pipe | Nm | 7 |
FRONT AXLE CARRIER
| Number | Designation | MODEL 207 | ||
|---|---|---|---|---|
| BA33.10-P-1004-01M | Mounting brace to front end/front axle carrier | M8 | Nm | 23 |
| M10 | Nm | 50 | ||
