Remove/install a pressure sensor - AR07.04-P-0050EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276 in MODEL 212, 218

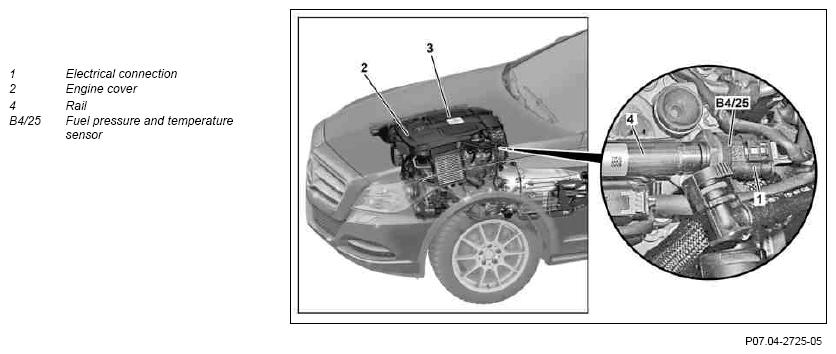

Shown on vehicle with engine 276.9
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| General information on work on gasoline direct injection system | AH07.00-P-2000-01A | ||
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Detach ground line from battery | AR54.10-P-0003EW | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 3.1 | Remove upper engine cover (2) | ENGINE 276.9 in MODEL 212, 218 | |
| 3.2 | Remove upper engine cover | ENGINE 276.8 in MODEL 212, 218 | |
| 4.1 | Remove intake manifold | ENGINE 276.9 in MODEL 212, 218 | AR09.20-P-1961EL |
| 4.2 | Remove left-hand air filter housing | ENGINE 276.8 in MODEL 212, 218 | AR09.10-P-1150ELS |
| 5 | Detach electrical connection (1) on fuel pressure and temperature sensor (B4/25) | ||
| Clean | |||
| 6 | Clean rail (4) in the area of the fuel pressure and temperature sensor (B4/25) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 7 | Unscrew fuel pressure and temperature sensor (B425) from rail (4) | ||
| *BA07.52-P-1002-01G | |||
| 8 | Install in the reverse order | ||
| 9 | Read out fault memory using the diagnostic system and delete | ||
| AD00.00-P-2000-04A | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Check fuel system for leaks with engine running |
FUEL DISTRIBUTOR
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA07.52-P-1002-01G | Pressure and temperature sensor to fuel distributor | Nm | 33 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
