Remove/install rear door triangular window - AR72.12-P-1940EG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 with CODE (Z04) Light armoring

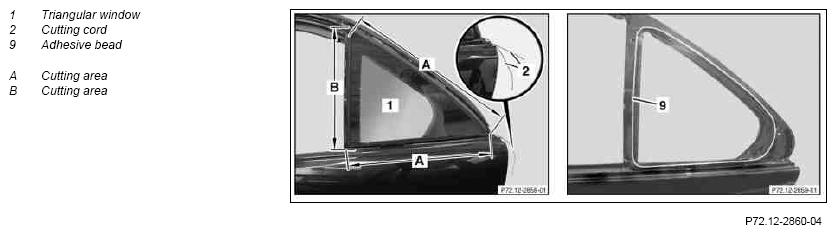

Fig 1: Rear Door Triangular Window Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of injury caused by hands or feet being pinched or crushed when working on windshield or windows	Secure windows to prevent them from falling, use only the prescribed lifting tools, always wear safety shoes.	AS67.00-Z-0003-01A
	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Prepare 1-component adhesive cartridge		AR67.10-P-1000-12SX
		Cartridge preheater, cartridge gun	Figure
		Repair kit	*BR00.45-Z-1135-02A
2.1	Remove crank window	Model 212 with code (Z04) Light armoring with rear power window	AR72.12-P-1910EG
2.2	Remove stationary window	Model 212 with code (Z04) Light armoring without rear power window
3	Remove window guide seal
4	Remove cutting cord (2)	Both ends of cutting cord (2) are located in the slot between the beltline and triangular window (1).
5	Attach pull handles from wooden doweling at both ends of the cutting cord (2)
6	Cut adhesive in cutting area (A) with suitable cutting cord (2)
	Risk of injury caused by slipping when inserting blade in the multicutter and by glass splinters when cutting out bonded windows	Always interrupt air supply or power supply before inserting or removing blade. Wear protective gloves and safety glasses.	AS67.00-Z-0001-01A
7	Cut adhesive in cutting area (B) with knife and remove triangular window (1)	Window removal tool, FEIN FSC 1.6 Always replace triangular window (1) after removal	Fig 2
	Install
8	Cut remaining adhesive off of rear door with suitable scraper and remove loosen glue residues.	Do not leave more than 2 mm of adhesive.
9	Clean gluing area on rear door using cleaner from repair kit and rub dry with rag.	The adhesive area must be absolutely free of dust and grease to prevent a decrease in the gluing force when installing the window.
9		Repair kit	*BR00.45-Z-1135-02A
10	Repair paint damages on rear door not covered by glue bead (9) with primer stick	Touch-up pencil	*BR00.45-Z-1012-07A
11	Coat adhesive area on rear door with primer included in the repair kit.	Allow primer to flash off for at least 10 minutes, otherwise the adhesive force of the glue is decreased. Prime points on adhesion area on rear door without adhesive residues.
11		Repair kit	*BR00.45-Z-1135-02A
12	Prepare triangular window (1) for installation	The gluing area on the triangular window must be absolutely free of dust and grease to prevent a decrease in the gluing force when installing the window.	AR72.12-P-1940-02EG
12	Prepare triangular window (1) for installation	Repair kit	*BR00.45-Z-1135-02A
13	Apply bead of adhesive (9) to rear door	Glue in triangular window (1) within 10 minutes after applying adhesive bead to rear door (9), otherwise the adhesive force of the glue starts to decrease. Uniformly apply bead of adhesive material. The height of the adhesive bead (9) is approx. 13 mm.
		Cartridge gun	Figure
		Repair kit	*BR00.45-Z-1135-02A
14	Install triangular window (1) on rear door and clip in	Ensure that both ends of cutting cord (2) are positioned in slot between beltline and triangular window (1).
15	Install window guide seal
16.1	Install crank window	Model 212 with code (Z04) Light armoring with rear power window	AR72.12-P-1910EG
16.2	Install stationary window	Model 212 with code (Z04) Light armoring without rear power window
17	Remove protective foil on inside of triangular window (1)

Fig 2: Identifying Cutting Blade (211 589 06 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Intermediate Piece (000 589 86 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1135-02A	Repair kit, installing windshields, 1-component adhesive	A 221 670 81 01
BR00.45-Z-1012-07A	Primer stick	A 000 986 27 50
