Remove/install rear door lock - AR72.12-P-2510EG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE (Z04) Light armoring
| Remove/install | |||
| 1 | Remove inner door panel | Model 212 with code (Z04) Light armoring with rear power window Model 212 with code (Z04) Light armoring without rear power window |
AR72.12-P-0104EG |
| 2.1 | Remove crank window | Model 212 with code (Z04) Light armoring with rear power window | AR72.12-P-1910EG |
| 2.2 | Remove stationary window | Model 212 with code (Z04) Light armoring without rear power window | |
| 3 | Remove power window | Model 212 with code (Z04) Light armoring with rear power window | AR72.12-P-1810EG |

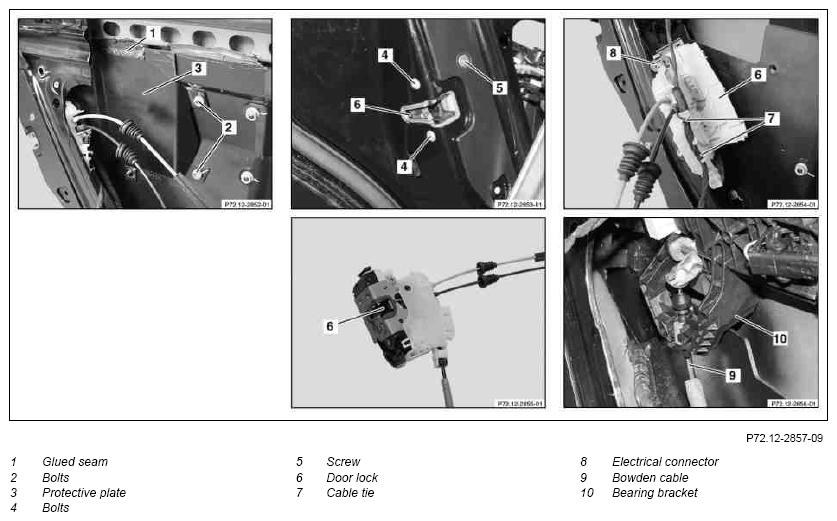

| 4 | Cut adhesive seam (1) between protective plate (3) and beltline reinforcement | ||
Cartridge gun |
Figure | ||
| Adhesive Sika 555 | *BR00.45-Z-1109-02A | ||
| 5 | Remove bolts (2) | *BA72.12-P-1012-01O | |
| 6 | Remove protective plate (3) from door | ||
| 7 | Remove bolts (4) | ||
| 8 | Remove bolt (5) | *BA72.12-P-1013-01O | |
| 9 | Slightly remove door lock (6) from door | ||
| 10 | Cut cable tie (7) | ||
| 11 | Disconnect electrical connector (8) | ||
| 12 | Unhook Bowden cable (9) from bearing bracket (10) | ||
| 13 | Remove door lock (6) from door | ||
| 14 | Install in the reverse order |
REAR DOOR
| Number | Designation | Model 212 with code Z04 | |
|---|---|---|---|
| BA72.12-P-1005-01O | Bolt, door lock on rear door | Nm | 7 |
| BA72.12-P-1012-01O | Bolt to protective plate for lock cover | Nm | 25 |
| BA72.12-P-1013-01O | Bolt to protective plate for door lock | Nm | 12 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1109-02A | Adhesive Sika 555 | Sika Deutschland GmbH |
