Remove/install rear door window lifter - AR72.12-P-1810EG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 with CODE (Z04) Light armoring

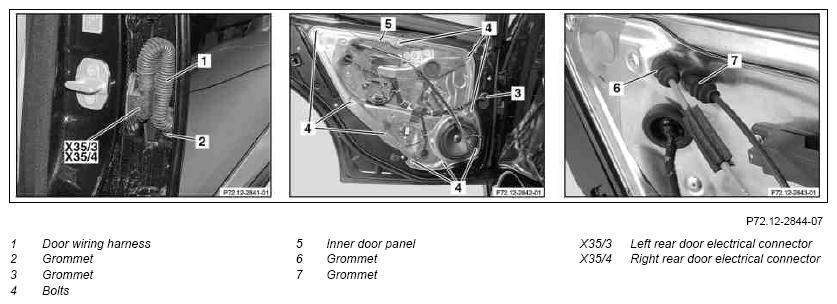

Fig 1: Rear Door Window Lifter Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

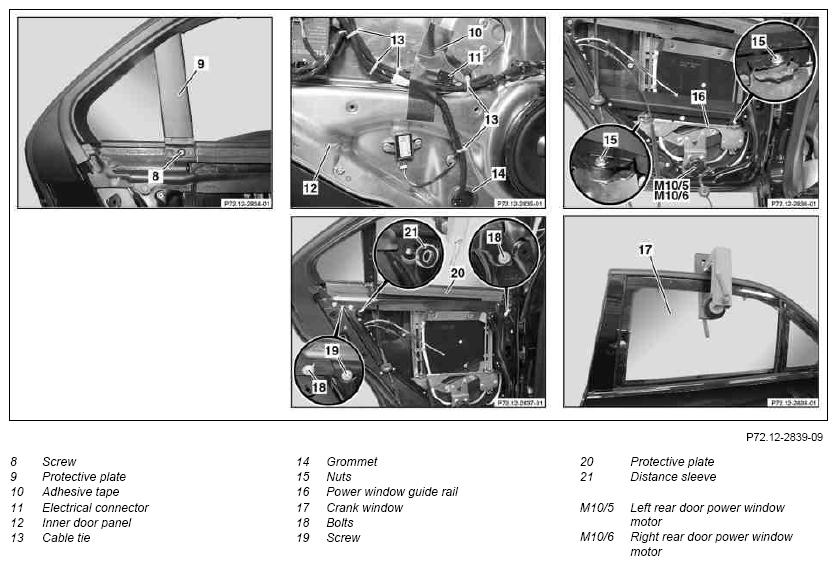

Fig 2: Rear Door Window Lifter Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

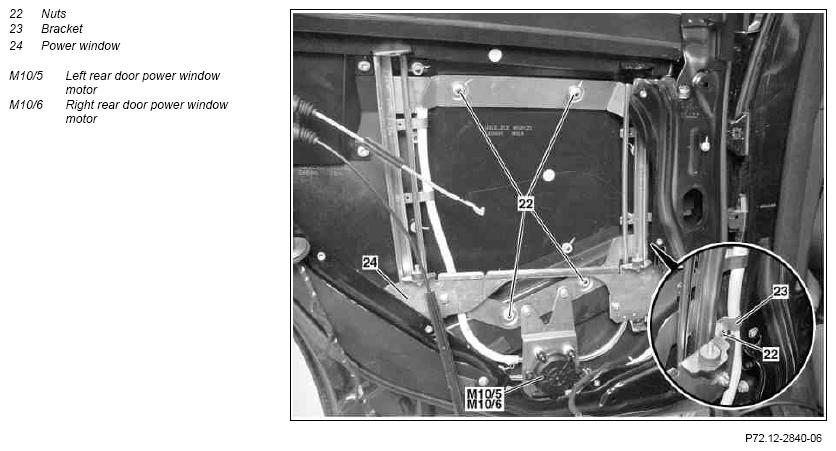

Fig 3: Rear Door Window Lifter Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by hands or feet being pinched or crushed when working on windshield or windows	Secure windows to prevent them from falling, use only the prescribed lifting tools, always wear safety shoes.	AS67.00-Z-0003-01A
	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Completely open crank window (17).
2	Remove rear door lining		AR72.12-P-1010CW
3	Disconnect electrical connection on left rear door (X35/3) and electrical connector on right rear door (X35/4)
4	Unclip grommets (2, 3)
5	Pull door wiring harness (1) out of rear door
6	Remove grommets (6, 7) from inner door panel (5)
7	Remove bolts (4)		*BA72.12-P-1006-01O
8	Remove inner door panel (5) from rear door, simultaneously guide inside door handle Bowden cable and locking pin Bowden cable through	Lay inner door panel (5) down to side with attached electrical wiring harness until nuts (15) are accessible.
9	Unscrew bolt (8)		*BA72.12-P-1010-01O
10	Remove guard plate (9)
11	Remove adhesive tape (10) over connector (11) from inner door panel (12)
12	Disconnect electrical connector (11)
13	Cut cable tie (13)	Observe installation position, replace cable tie (13).
14	Remove grommet (14) from inner door panel (12)
15	Guide electrical wiring harness for left rear door power window motor (M10/5) or right rear door power window motor (M10/6) through inner door panel (12)
16	Unscrew nuts (15)		*BA72.12-P-1007-01O
17	Move crank window (17) completely upward	Slide crank window (17) down until it is positioned in mounts on power window rail (16).
18	Secure crank window (17) against falling down with clamping pliers	Aid of helper required.	Fig 4
19	Unscrew bolts (18, 19)	When screwing out bolt (19), the spacer sleeve (21) between the inner door panel and door lock protective plate may loosen and fall down. When installing reposition spacer sleeve (21) correctly.	*BA72.12-P-1011-01O
20	Remove protective plate (20) from rear door
21	Unscrew nuts (22)		*BA72.12-P-1009-01O
22	Remove bracket (23)
23	Carefully remove power window (24) from rear door	So that crank window (17) cannot be scratched.
24	Install in the reverse order

REAR DOOR

Number	Designation		Model 212 with code Z04
BA72.12-P-1006-01O	Bolt, inner door panel to rear door	Nm	5
BA72.12-P-1007-01O	Nut, crank window to power window	Nm	12
BA72.12-P-1009-01O	Nut, power window to rear door	Nm	25
BA72.12-P-1010-01O	Bolt, protective plate to triangular window	Nm	25
BA72.12-P-1011-01O	Bolt, protective plate for beltline to door	Nm	25

Fig 4: Identifying Chuck (220 589 04 31 00)

Courtesy of MERCEDES-BENZ USA
