Remove/install crank window in front door - AR72.10-P-1900EG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 with CODE Z04 (Light armoring)

MODIFICATION NOTES

10.5.12

Adjustment method for crank window added

Operation steps 8.1 and 8.2

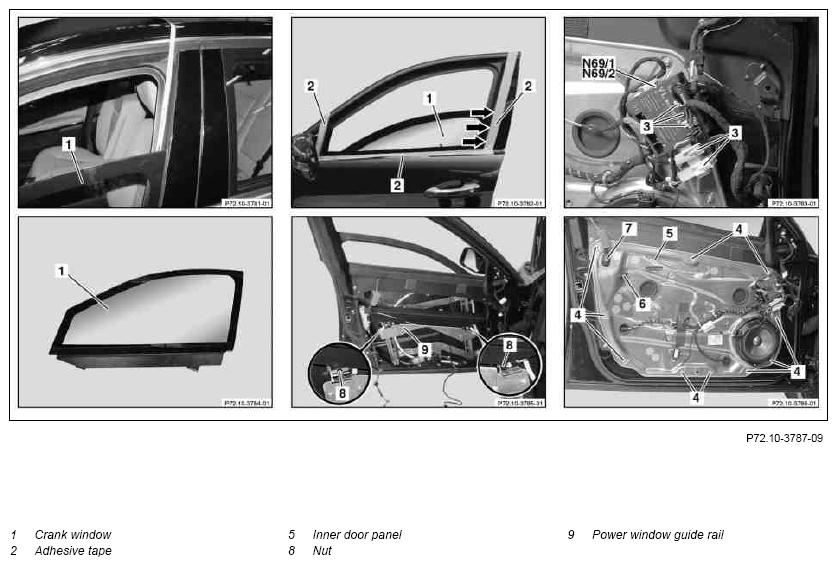

Fig 1: Front Door Crank Window Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove
	Risk of injury from pinching or crushing hands and feet when working on windows. Secure the windows against falling out; use only specified lifting tools; wear safety shoes.		AS67.00-Z-0003-01A
	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Lower crank window (1) approx. 250 mm
2	Remove waistline trim strip	Carefully remove waistline trim strip. Otherwise the crank window (1) can be scratched and must be replaced.
3	Remove inner door panel (5) and lay down to side with electrical wiring harness connected		AR72.10-P-0104EG
4	Mask edges on window channel, mirror triangle and B-pillar cover with adhesive tape (2)	Mask off carefully. Otherwise the crank window (1) can be scratched and must be replaced.
5	Unscrew nuts (8)
6	Remove crank window (1) from window guide rail (9), tilt upward at rear and remove from window channel on front door upward and toward outside	Helper required.
	Install
7	Insert crank window (1) above window channel into front door and push downward until it is positioned in the mounts on the window guide rail (9)	Carefully handle crank window (1). Otherwise the crank window (1) can be scratched and must be replaced. Helper required.
8.1	Push crank window (1) into rear window guide rail (arrows) to limit stop and tighten nuts (8)	MODEL 212.### ## up to 569852 with CODE Z04 (Light armoring)
8.1		MODEL 212 with CODE Z04 (Light armoring)	*BA72.10-P-1007-01S
8.2	Adjust crank window (1)	MODEL 212.### ## as of 569853 with CODE Z04 (Light armoring)
8.2	Adjust crank window (1)		AR72.10-P-1950EG
9	Close crank window (1)
10	Install waistline trim strip	Carefully install waistline trim strip. Otherwise the crank window (1) can be scratched and must be replaced.
11	Remove adhesive strip (2) from window channel, mirror triangle and B-pillar cover
12	Install inner door panel		AR72.10-P-0104EG

FRONT DOOR

Number	Designation		MODEL 212 with CODE Z04 (Light armoring)
BA72.10-P-1007-01S	Nut, crank window to power window	Nm	12
