Adjust front door crank window - AR72.10-P-1950EG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.### ## as of 569853 with CODE Z04 (Light armoring)

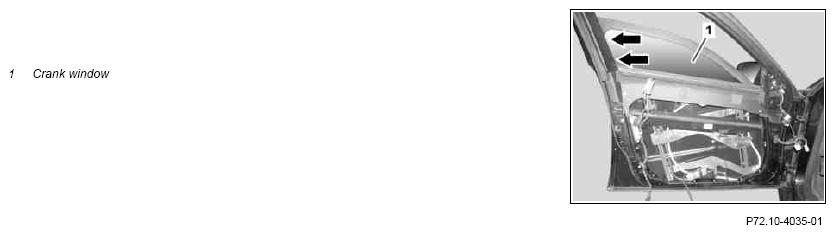

Fig 1: Adjusting Front Door Crank Window (1 Of 2)

Courtesy of MERCEDES-BENZ USA

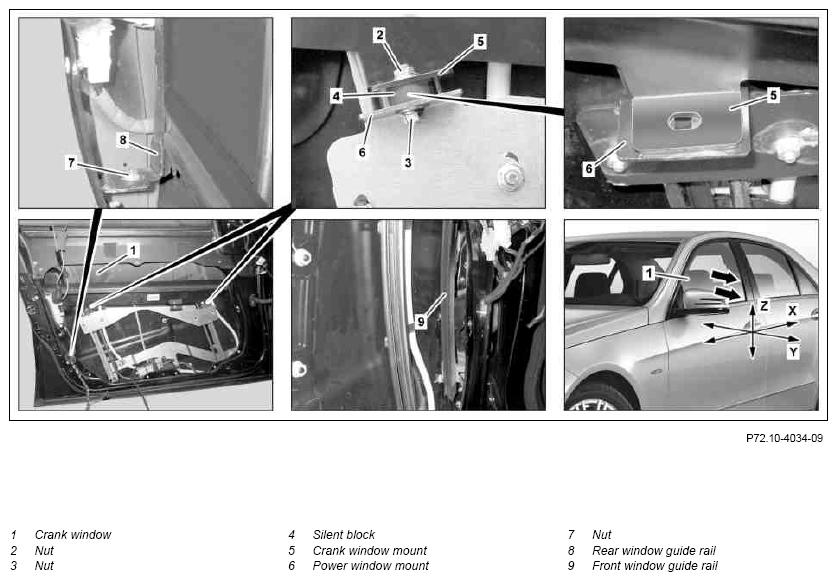

Fig 2: Adjusting Front Door Crank Window (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove
	Risk of injury from pinching or crushing hands and feet when working on windows. Secure the windows against falling out; use only specified lifting tools; wear safety shoes.		AS67.00-Z-0003-01A
	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Open crank window (1) approx. 250 mm
2	Remove inner door panel and lay down to side with electrical wiring harness connected		AR72.10-P-0104EG
	Adjust
3	Unscrew nuts (2, 3) and remove silent blocks (4)
4	Lay crank window mounts (5) down on power window mounts (6)
5	Completely move down crank window (1) with driver-side power window and outside mirror adjustment switch group or passenger-side power window and outside mirror adjustment switch group
6	Mark position of elongated holes on power window mounts (6) and crank window mounts (5) to one another
7	Move crank window (1) up with driver-side power window and outside mirror adjustment switch group or passenger-side power window and outside mirror adjustment switch group so that elongated holes are still visible from bottom
8	Mark position of elongated holes on crank window mounts (5) and power window mounts (6) to one another	Elongated holes must be located in the same relative position to one another in the Y direction at this point, as in the upper position of the crank window (1).
9	Loose nut (7) and move rear window guide rail (8) in lower area accordingly until the position of the elongated holes coincides.	If the position of the elongated hole does coincide in the Y-direction.
10	Tighten nut (7)	If the rear window guide rail (8) is adjusted.
11	Move crank window (1) down with driver-side power window and outside mirror adjustment switch group or passenger-side power window and outside mirror adjustment switch group so that both silent blocks (4) can be installed
12	Raise crank window (1) and insert silent blocks (4)
13	Place crank window mounts (5) on front and rear silent blocks (4), push crank window (1) into rear window guide rail (arrows) to stop and tighten nuts (2, 3)	MODEL 212 with CODE Z04 (Light armoring)	*BA72.10-P-1007-01S
14	Check crank window (1) for easy motion	Move crank window (1) up and down with driver-side power window and outside mirror adjustment switch group or passenger-side power window and outside mirror adjustment switch group. Ensure that crank window (1) moves without tension. If left front door power window motor or right front door power window motor runs irregularly or a low speed indicates high friction of the crank window (1) in the front window guide rail (9) or rear window guide rail (8), repeat adjustment and correct.
	Install
15	Install inner door panel		AR72.10-P-0104EG
16	Close crank window (1)

FRONT DOOR

Number	Designation		MODEL 212 with CODE Z04 (Light armoring)
BA72.10-P-1007-01S	Nut, crank window to power window	Nm	12
