Replacing steering shaft boot - AR46.10-P-0621EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||

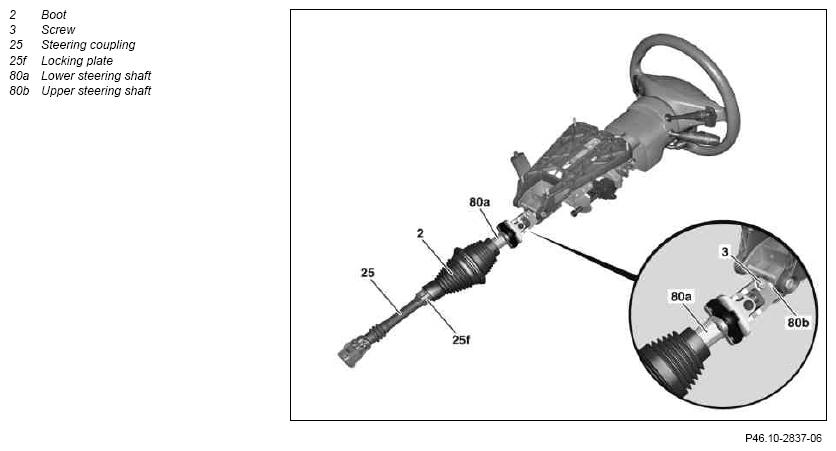

| 1 | Move steering wheel into uppermost position | ||
| 2 | Detach steering coupling (25) from lower steering shaft (80a) | AR46.10-P-8000EW | |
| 3 | Pull locking plate (25f) off steering coupling (25) | ||
| 4 | Remove left cover below dashboard | ||
| 5 | Detach lower steering shaft (80a) from upper steering shaft (80b) | ||
| *BA46.10-P-1003-01M | |||
| 6 | Detach boot (2) from firewall and remove lower steering shaft (80a) with boot (2) | ||
| 7 | Remove boot (2) from lower steering shaft (80a) | See: ↓ |
|
| Assemble lower steering shaft | AR46.10-P-7310-01CW | ||
| 8 | Install in the reverse order |
STEERING SHAFT
| Number | Designation | Model 212 | Model 218 | |
|---|---|---|---|---|
| BA46.10-P-1003-01M | Self-locking bolt, lower steering shaft to upper steering shaft | Nm | 23 | 23 |
