Remove/install hydraulic line of power steering - AR46.25-P-3015EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 with ENGINE 272, 273, 276, 642, 651 Pressure line of the power steering

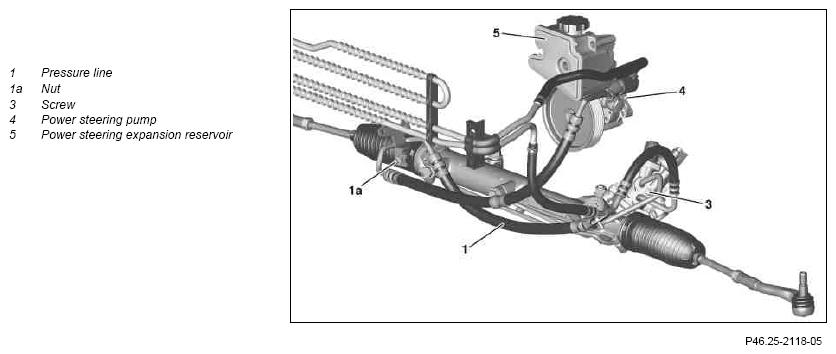

Fig 1: Hydraulic Line Of Power Steering Remove/Install Components
G09976747DANGERDANGERREMOVINGINSTALLINGIMPORTANTINSTALLATION IMPORTANTIMPORTANTSPECIAL TOOLNOTESIMPORTANTTORQUE SPECIFICATIONSPECIAL TOOLTORQUE SPECIFICATIONIMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONIMPORTANTTORQUE SPECIFICATIONSPECIAL TOOLINSPECTDANGERCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  from swallowing hydraulic fluid. Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. AS00.00-Z-0013-01A
REMOVINGINSTALLING Remove/install
1 Open engine hood and raise to vertical position   AR88.40-P-1000EW
2.1 Remove left engine intake air duct and engine cover MODEL 212 with ENGINE 272, 273, 276, 642 Pressure line of the power steering
IMPORTANT Pull off engine cover upwards.
INSTALLATION IMPORTANT Ignition switched off.

2.2 Remove engine air intake duct and engine cover MODEL 212 with ENGINE 651 Pressure line of the power steering
IMPORTANT Pull off engine cover upwards.

2.3 Remove front upper engine cover. MODEL 212 with ENGINE 276 Pressure line of the power steering
3 Suction off oil from expansion reservoir (5) of power steering SPECIAL TOOL Hand pump Figure
4.1 Remove engine compartment panels MODEL 212 with ENGINE 272, 273, 276 Pressure line of the power steering
AR61.20-P-1105EW
4.2 Remove bottom section of soundproofing MODEL 212 with ENGINE 642, 651 Pressure line of the power steering
AR94.30-P-5300EW
5 Detach pressure line (1) from the power steering pump (4) NOTES Before opening the hydraulic system, thoroughly clean the area surrounding the separation point.
Even the smallest dirt particles, introduced into the hydraulic components, can lead to malfunctions and a total failure of the hydraulic system.
IMPORTANT Collect oil which runs out and seal connections immediately.

TORQUE SPECIFICATION Attachment, high pressure expansion hose to power steering pump *BA46.30-P-1004-01T
SPECIAL TOOL Record plug Figure
6 Detach pressure line (1) from bracket to A/C compressor MODEL 212 with ENGINE 273 Pressure line of the power steering
TORQUE SPECIFICATION Nut, high-pressure line to alternator bracket *BA46.30-P-1007-01T
7.1 Detach pressure line (1) with two brackets from oil pan MODEL 212 with ENGINE 651 Pressure line of the power steering
IMPORTANT When replacing the pressure line (1) the brackets must be assembled onto the new pressure line (1).

TORQUE SPECIFICATION Nut, high-pressure line to oil pan bracket *BA46.30-P-1012-01T
TORQUE SPECIFICATION Bolt, bracket to oil pan *BA46.30-P-1013-01T
7.2 Remove nut (1a) and remove pressure line (1) from bracket MODEL 212 with ENGINE 272, 273, 276, 642 Pressure line of the power steering
TORQUE SPECIFICATION Nut, high-pressure line to alternator bracket *BA46.30-P-1006-01T
8 Remove bolt (3) and remove pressure line (1) IMPORTANT Collect oil which runs out and seal connections immediately.
TORQUE SPECIFICATION Bolt, clamp plate, high-pressure line/return line to rack-and-pinion steering control head *BA46.20-P-1003-01N
SPECIAL TOOL Record plug Figure
9 Install in the reverse order
10 Fill and bleed power steering pump (4)   AR46.30-P-0010EW
INSPECT Check
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
11 Test run engine and check steering system for leaks
POWER STEERING PUMP

Number Designation MODEL 212
BA46.30-P-1004-01T Attachment, high pressure expansion hose to power steering pump Union nut Nm 40
Banjo bolt Nm 45
Screw M8 Nm 18
POWER STEERING PUMP

Number Designation MODEL 212
BA46.30-P-1012-01T Nut, high-pressure line to oil pan bracket Nm 8
POWER STEERING PUMP

Number Designation MODEL 212
BA46.30-P-1013-01T Bolt, bracket to oil pan Nm 10
POWER STEERING PUMP

Number Designation MODEL 212
BA46.30-P-1007-01T Nut, high-pressure line to alternator bracket Nm 8
STEERING GEAR

Number Designation MODEL 212 except 4MATIC MODEL 212 with 4MATIC
BA46.20-P-1003-01N Bolt, clamp plate, high-pressure line/return line to rack-and-pinion steering control head Nm 21 21
POWER STEERING PUMP

Number Designation MODEL 212
BA46.30-P-1006-01T Nut, high-pressure line to alternator bracket Nm 8
Fig 2: Identifying Hand Pump (210 589 00 71 00)
G09976748Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Record Plug (129 589 00 91 00)
G09976749Courtesy of MERCEDES-BENZ USA
