Check/replace water drain valve in steering gear - AR46.20-P-0005EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 166, 218

MODEL 204, 207, 212 with CODE 211 (Direct-Steer system) MODEL 217

MODEL 222

MODEL 231 with CODE 211 (Direct-Steer system)

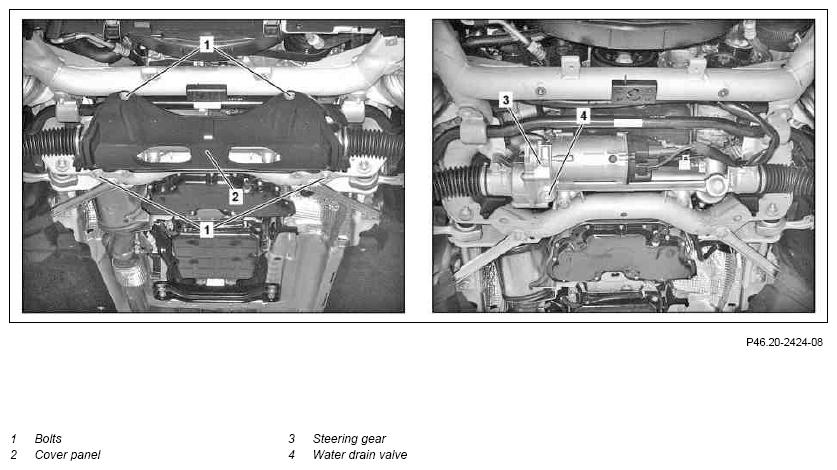

Shown on model 218

Fig 1: Water Drain Valve In Steering Gear Components - Shown On Model 218
G09976696Courtesy of MERCEDES-BENZ USA

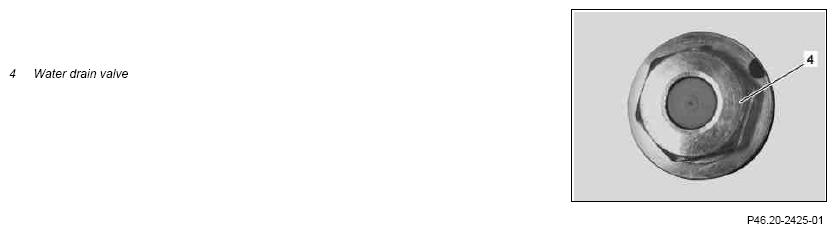

Shown on closed water drain valve

Fig 2: Water Drain Valve In Steering Gear Components - Shown On Closed Water Drain Valve
G09976697Courtesy of MERCEDES-BENZ USA

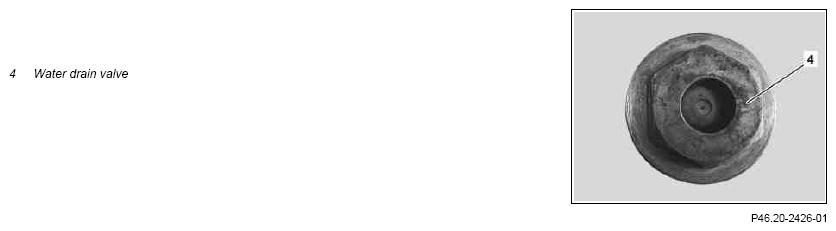

Shown on opened water drain valve

Fig 3: Water Drain Valve In Steering Gear Components - Shown On Opened Water Drain Valve
G09976698Courtesy of MERCEDES-BENZ USA
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1.1 Remove center section of the lower engine compartment paneling MODEL 204.0/2/3., 207, 212, 218 with gasoline engine
AR61.20-P-1105EW
1.2 Remove center engine compartment paneling MODEL 231
with CODE 211 (Direct-Steer system)
AR61.20-P-1105RK
1.3 Remove center engine compartment paneling MODEL 204
with CODE 211 (Direct-Steer system)
AR61.20-P-1105CY
1.4 Remove center engine compartment paneling MODEL 217
MODEL 222
AR61.20-P-1105LF
1.5 Remove center bottom section of soundproofing MODEL 204.0/2/3, 207, 212, 218 with diesel engine
AR94.30-P-5300EW
1.6 Remove corresponding underfloor paneling MODEL 166
AR61.30-P-1001GQ
2 Remove bolts (1) and remove cover panel (2) If installed
TORQUE SPECIFICATION
MODEL 207, 212
with CODE 211 (Direct-Steer system)
MODEL 218		 *BA33.10-P-1005-01M
INSPECT Check
3 Check water drain valve (4) for condition (open, closed) If water drain valve (4) is open, check both boots for damage and check toothed rack for corrosion.
↓
Replace boot, replace water drain valve (4).
MODEL 166, 218
MODEL 204, 207, 212
with CODE 211 (Direct-Steer system)		 AR46.40-P-0400EW
MODEL 231
with CODE 211 (Direct-Steer system)		 AR46.40-P-0400RK
MODEL 217
MODEL 222		 AR46.40-P-0400LF
TORQUE SPECIFICATION
MODEL 217.364/378/384/385
MODEL 217.377/379/382/477/479/482
MODEL 222.004/032/057/077/082/104/123/157/162/163/165/176/177/179/182
MODEL 222.033/067/085/133/167/178/184/185		 *BA46.20-P-1004-01P
TORQUE SPECIFICATION
MODEL 204 (except 204.08/09/28/29/38/904/937/98/99)
with CODE 211 (Direct-Steer system)
MODEL 204.08/09/28/29/38/904/937/98/99 with CODE 211 (Direct-Steer system)
MODEL 207 (except 207.388)
with CODE 211 (Direct-Steer system)
MODEL 207.388
with CODE 211 (Direct-Steer system)
MODEL 212 (except 212.039/066/067/08/090/091/093/094/097/099/266/267/28/291/293/294/297/299)
with CODE 211 (Direct-Steer system)
MODEL 212.039/066/067/08/090/091/093/094/097/099/266/267/28/291/293/294/297/299
with CODE 211 (Direct-Steer system)
MODEL 218 (except 218.367/368/391/393/394/967/968/991/993/994)
MODEL 218.367/368/391/393/394/967/968/991/993/994		 *BA46.20-P-1012-01N
TORQUE SPECIFICATION
MODEL 166
MODEL 231
with CODE 211 (Direct-Steer system)		 *BA46.20-P-1003-01O
4 Install in the reverse order
FRONT AXLE CARRIER

Number Designation MODEL 207 MODEL 212
BA33.10-P-1005-01M Bolt, cover panel to front axle carrier Nm 55 55
FRONT AXLE CARRIER

Number Designation MODEL 218
BA33.10-P-1005-01M Bolt, cover panel to front axle carrier Nm 55
STEERING GEAR

Number Designation MODEL 166 MODEL 231
BA46.20-P-1003-01O Bolt, water drain valve to electrical rack-and-pinion steering Nm 20 20
STEERING GEAR

Number Designation MODEL 222 except 4MATIC MODEL 222 with 4MATIC
BA46.20-P-1004-01P Bolt, water drain valve to electrical rack-and-pinion steering Nm 20 20
STEERING GEAR

Number Designation MODEL 217 except 4MATIC MODEL 217 with 4MATIC
BA46.20-P-1004-01P Bolt, water drain valve to electrical rack-and-pinion steering Nm 20 20
STEERING GEAR

Number Designation MODEL 204 except 4MATIC, except 204.9 MODEL 204 with 4MATIC, with MODEL 204.9
BA46.20-P-1012-01N Bolt, water drain valve to electrical rack-and-pinion steering Nm 20 20
STEERING GEAR

Number Designation MODEL 207 except 4MATIC MODEL 207 with 4MATIC
BA46.20-P-1012-01N Bolt, water drain valve to electrical rack-and-pinion steering Nm 20 20
STEERING GEAR

Number Designation MODEL 212 except 4MATIC MODEL 212 with 4MATIC
BA46.20-P-1012-01N Bolt, water drain valve to electrical rack-and-pinion steering Nm 20 20
STEERING GEAR

Number Designation MODEL 218 except 4MATIC MODEL 218 with 4MATIC
BA46.20-P-1012-01N Bolt, water drain valve to electrical rack-and-pinion steering Nm 20 20
