Remove/install trunk lid power closing unit - AR80.40-P-1000EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1 with CODE 881 (Remote boot lid closing)
MODEL 212.0/1 with CODE P17 (KEYLESS-GO package)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove | |||

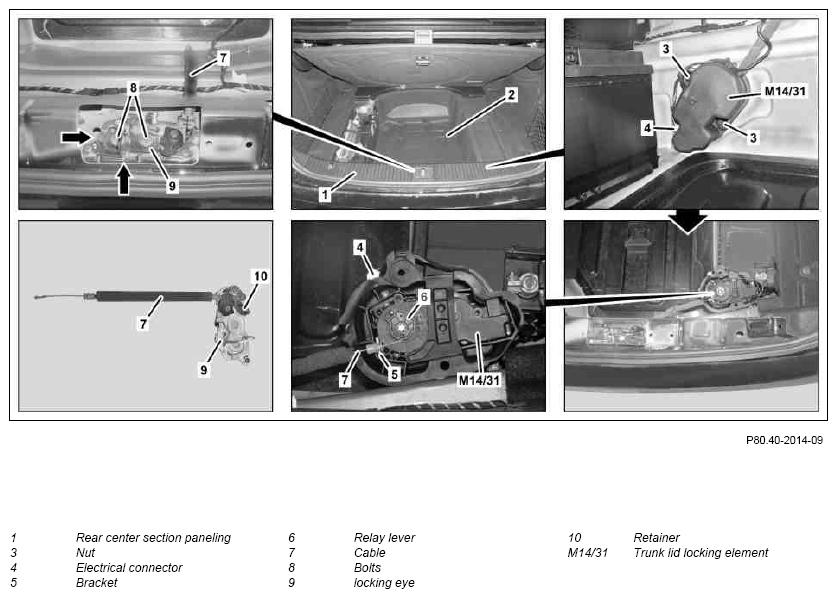

| 1 | Remove rear center section paneling (1) | AR68.30-P-4600EW | |
| 2 | Unscrew nuts (3) | ||
| 3 | Remove trunk lid lock element (M14/31) and turn until cable (7) on bracket (5) is accessible | ||
| 4 | Unhook cable (7) from bracket (5) and relay lever (6) | ||
| 5 | Disconnect electrical connection (4) | ||
| 6 | Remove trunk lid lock element (M14/31) | ||
| 7 | Mark installation position of lock striker (9) (arrows) | ||
| 8 | Unscrew bolts (8) and remove locking eye (9) | ||
| Install | |||
| 9 | Align lock striker (9) according to markings (arrows) previously made and screw in bolts (8) to stop | ||
| 10 | Connect electrical connector (4) | ||
| 11 | Hook cable (7) into bracket (5) on relay lever (6) | ||
| 12 | Tighten trunk lid lock element (M14/31) with nuts (3) | ||
| 13 | Remove retainer (10) | When replacing lock striker (9). | |
| 14 | Adjust trunk lid | AR88.50-P-5200EW | |
| 15 | Install rear center section paneling (1) | AR68.30-P-4600EW |
