Adjust trunk lid - AR88.50-P-5200EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1, 218.3

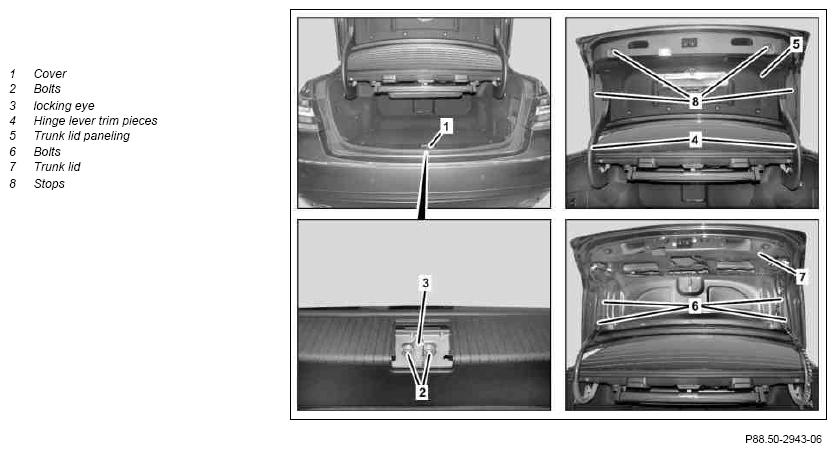

Shown on model 212.0/1
| Remove | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| 1 | Remove cover (1) | ||
| 2 | Unscrew bolts (2) and remove locking eye (3) | ||
| 3.1 | Remove left and right hinge bracket trim pieces (4) | MODEL 212.0/1 | |
| 3.2 | Loosen left and right hinge bracket trim piece (4) from trunk lid (7) | MODEL 218.3 | |
| Adjust in longitudinal direction | |||
| 4 | Lift trunk lid paneling (5) at side on left and right hinge lever and loosen bolts (6) | ||
| 5 | Adjust trunk lid (7) in longitudinal direction | MODEL 212.0/1 Gap dimensions on hoods, doors and lids |
AR60.00-P-0700-01EW |
| Gap dimensions on hoods, doors and lids MODEL 218.3 |
AR60.00-P-0700-01EL | ||
| Gap dimension | *BE60.00-P-1003-01U | ||
| Gap dimension | *BE60.00-P-1003-01O | ||
| Figure | |||
| 6 | Tighten bolts (6) on left and right hinge lever | ||
| *BA88.50-P-1002-01E | |||
| Adjust lateral direction and height | |||
| 7 | Screw in stops (8) | ||
| 8 | Install locking eye (3) and adjust so that height of trunk lid (7) matches height of rear fender | ||
| 9 | Tighten bolts (2) for locking eye (3) | ||
| 10 | Coat contact surface on end stops (8) with chalk | ||
| 11 | Remove stops (8) until the chalk on the contact surfaces of the rear center section and the two rear fenders is visible when the trunk lid (7) is closed | ||
| Install | |||
| 12.1 | Install left and right hinge lever trim piece (4) | MODEL 212.0/1 | |
| 12.2 | Fasten left and right hinge bracket trim piece (4) to trunk lid (7) | MODEL 218.3 | |
| 13 | Install cover (1) | ||
| 14 | Calibrate reversing camera and 360° camera with STAR DIAGNOSIS | MODEL 212.0/1, 218.3 with CODE 218 (reversing camera) MODEL 212.0/1, 218.3 with CODE 501 (360 degree camera) | |
| AD00.00-P-2000-04A |
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS
| Number | Designation | MODEL 218.3 | |||
|---|---|---|---|---|---|
| BE60.00-P-1003-01O | Gap dimension | Trunk lid to rear fender, top | Dimension "J" | mm | 4, 0 (±1) |
| Trunk lid to rear lamp unit | Dimension "K" | mm | 5, 0 (±1) | ||
| Trunk lid to bumper | Dimension "L" | mm | 5, 5 (±1) | ||
| Rear fender to lamp unit | Dimension "M" | mm | 3, 0 (±1) | ||
| Picture | AR60.00-P-0700-01E L | ||||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | MODEL 212.0/1 | |||
|---|---|---|---|---|---|
| BE60.00-P-1003-01U | Gap dimension | Trunk lid to rear fender, top | Dimension "L" | mm | 4 (±1) |
| Trunk lid to taillamp | Dimension "M" | mm | - | ||
| Trunk lid to bumper | Dimension "N" | mm | 6, 5 (±1) | ||
| Rear fender to taillamp | Dimension "O" | mm | 2 (+1, 5/-1) | ||
| Taillamp to bumper | Dimension "P" | mm | 2 (±1) | ||
| Trunk lid taillamp to taillamp | Dimension "M1" | mm | 4 (±1, 5) | ||
| Picture | AR60.00-P-0700-01EW | ||||
TRUNK LID
| Number | Designation | MODEL 212 | MODEL 218.3 | |
|---|---|---|---|---|
| BA88.50-P-1002-01E | Screw/bolt, hinge bracket to trunk lid | Nm | 6 | 10 |
