Remove/install temperature sensor - AR15.60-P-3000CMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 204, 212
| Remove/install | |||
| Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Switch off ignition | ||
| 2 | Remove engine intake air duct and front engine cover | ||
| 3 | Remove poly-V belt (4) | AR13.20-P-0001CMG | |
| 4 | Remove guide pulley (5) from coolant pump housing | *BA13.25-P-1004-01U | |
| 5 | Drain coolant at radiator | AR20.00-P-1142CMG | |
| Notes on coolant | AH20.00-N-2080-01A | ||

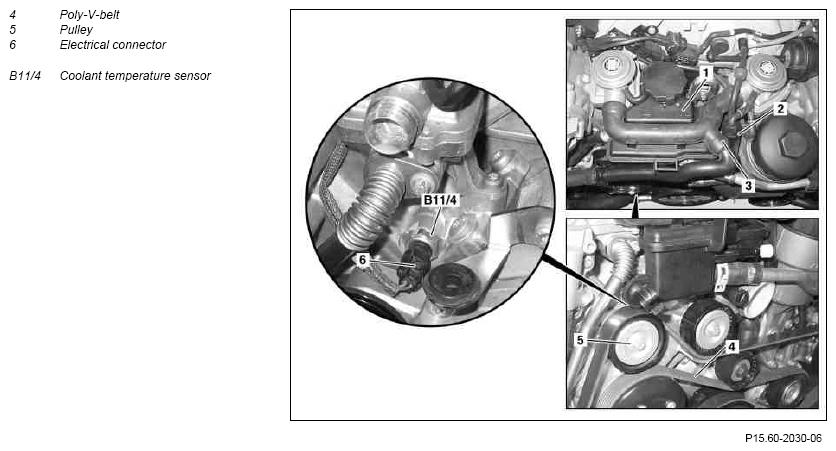

| 6 | Unlock and disconnect electrical connector (6) on coolant temperature sensor (B11/4) | ||
| 7 | Remove coolant temperature sensor (B11/4) from cylinder head | ||
| *BA15.60-P-1002-01C | |||
| 8 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 9 | Conduct engine test run and check engine for leaks while it is running |
TEMPERATURE SENSOR
| Number | Designation | ENGINE 156, 159 | |
|---|---|---|---|
| BA15.60-P-1002-01C | Coolant temperature, temperature sensor on cylinder head | Nm | 21 |
BELT TENSIONING DEVICE
| Number | Designation | ENGINE 156, 159 | |
|---|---|---|---|
| BA13.25-P-1004-01U | Guide pulley to coolant pump housing (between alternator and smooth guide pulley) | Nm | 20 |
