Remove/install starter - AR15.30-P-7100MRC

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 with ENGINE 274.9 with CODE 924 (Provision for natural gas operation)

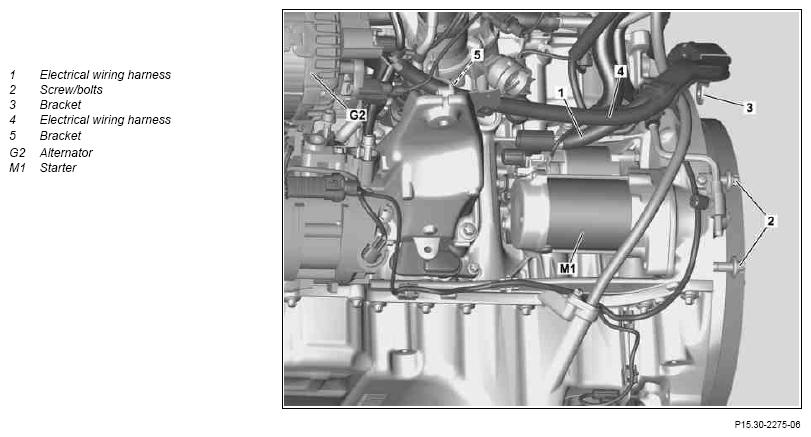

Fig 1: Starter Remove/Install Components
G10240934Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Disconnect battery ground line   AR54.10-P-0003EW
2 Remove bottom engine compartment paneling   AR61.20-P-1105EW
3 Detach bracket (3) from transmission
4 Detach electrical wiring harness (1) on starter (M1)   AR15.30-P-7100-03MR
TORQUE SPECIFICATION Nut, connection for terminal designation 50 *BA15.30-P-1002-01J
TORQUE SPECIFICATION Nut, connection for terminal designation 30 *BA15.30-P-1001-01J
5 Detach bracket (5) of electrical wiring harness (4) to alternator (G2) on engine support
6 Remove screw/bolts (2) and remove starter (M1) from bottom TORQUE SPECIFICATION Bolt, starter to crankcase *BA15.30-P-1003-01J
INSPECT Check
7 Check starter ring gear for wear and damage When replacing the starter (M1).
8 Install in the reverse order
STARTER

Number Designation ENGINE 274
BA15.30-P-1001-01J Nut, connection for terminal designation 30 Nm 15
STARTER

Number Designation ENGINE 274
BA15.30-P-1002-01J Nut, connection for terminal designation 50 Nm 6
STARTER

Number Designation ENGINE 274
BA15.30-P-1003-01J Bolt, starter to crankcase Nm 40
