Remove/install starter - AR15.30-P-7100EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272, 273 in MODEL 212
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Detach ground line from battery | AR54.10-P-0003EW | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove rear and middle section of engine compartment paneling | AR61.20-P-1105EW | |
| 3 | Remove left catalytic converter Vehicles with 4MATIC | AR49.10-P-7100EW | |

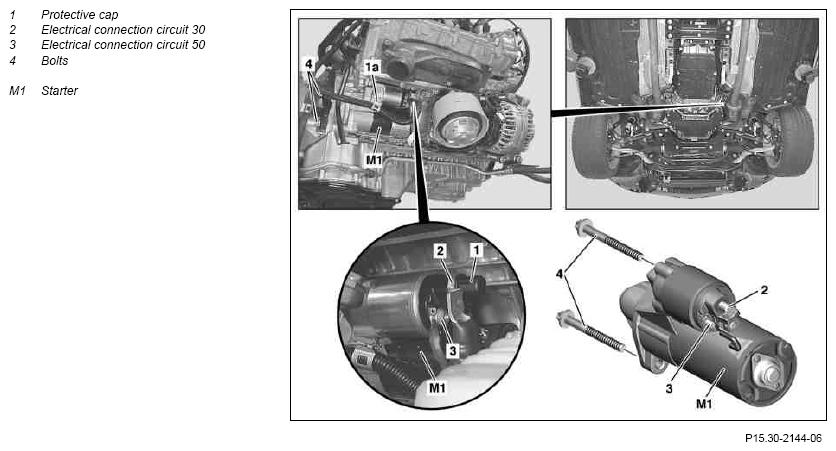

| 4 | Detach protective cap (1) and remove electrical lines to electrical connections (2, 3) | *BA15.30-P-1001-01J | |
| *BA15.30-P-1002-01J | |||
| 5 | Remove bolts (4) and remove starter (M1) from bottom | *BA15.30-P-1003-01J | |
| Checking | |||
| 6 | Check starter ring gear for wear and damage | When replacing the starter (M1) |
|
| Figure | |||
| 7 | Install in the reverse order |
STARTER
| Number | Designation | ENGINE 272, 273 | |
|---|---|---|---|
| BA15.30-P-1001-01J | Nut, connection for circuit 30 | Nm | 15 |
| BA15.30-P-1002-01J | Nut, connection for circuit 50 | Nm | 8 |
| BA15.30-P-1003-01J | Bolt connecting starter to crankcase | Nm | 40 |
