Remove/install alternator belt pulley - AR15.40-P-5710EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157, 276, 278 in MODEL 212, 218, 231
ENGINE 278 in MODEL 207
Shown on engine 276.9
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1.1 | Remove front engine cover (2) and engine air intake duct (1) | ENGINE 276 | |
| 1.2 | Remove front engine cover and engine air intake ducts | ENGINE 157, 278 | |
| 2 | Remove poly-V belt (3) | ENGINE 276.8 in MODEL 212, 218 | AR13.20-P-0001ELS |
| ENGINE 276.9 in MODEL 212, 218 | AR13.20-P-0001EL | ||
| ENGINE 157, 278 in MODEL 212, 218 ENGINE 278 in MODEL 207 |
AR13.20-P-0001ELB | ||
| ENGINE 276 in MODEL 231 | AR13.20-P-0001RKA | ||
| ENGINE 157, 278 in MODEL 231 | AR13.20-P-0001RKB | ||
| 3 | Unscrew belt pulley (4) with socket wrench | ||
| *BA15.40-P-1004-01F | |||

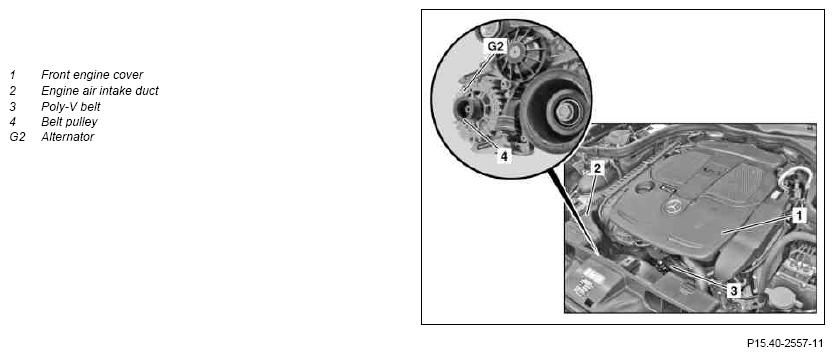

| Figure | |||
| Figure | |||
| 4 | Install in the reverse order |
ALTERNATOR
| Number | Designation | ENGINE 157 | ENGINE 276 | |
|---|---|---|---|---|
| BA15.40-P-1004-01F | Collar nut, connecting belt pulley to alternator | Nm | 75 | 75 |
ALTERNATOR
| Number | Designation | ENGINE 278 | |
|---|---|---|---|
| BA15.40-P-1004-01F | Collar nut, connecting belt pulley to alternator | Nm | 75 |
