Redrill broken glow plugs - AR15.20-P-4112OG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 164, 203, 204, 207, 209, 211, 212, 219, 221, 251

ENGINES 642 in MODEL 463

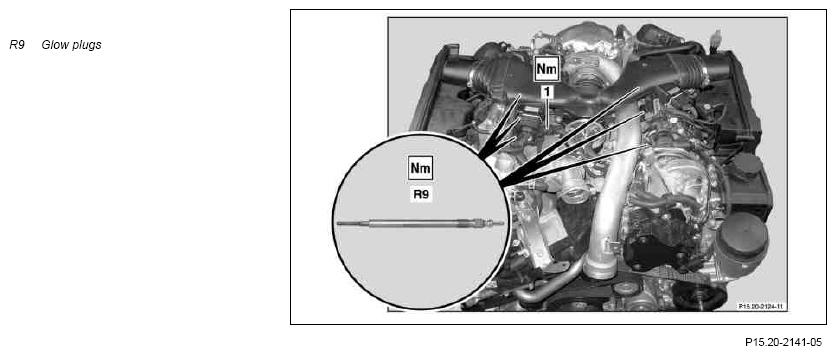

Shown on model 221

Fig 1: Glow Plugs - Shown On Model 221

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury to skin and eyes caused by handling hot or glowing objects.	Wear safety gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
1	Remove glow plugs (R9)	Model 164, 251	AR15.20-P-4111GZB
		Model 203, 209	AR15.20-P-4111PI
		Models 204, 207, 212	AR15.20-P-4111CO
		Model 211	AR15.20-P-4111TI
		MODEL 219.322	AR15.20-P-4111TQ
		Model 221	AR15.20-P-4111SXI
		MODEL 463	AR15.20-P-4111GY
	Notes for ceramic glow plugs	MODEL 463	AH15.20-P-0001-01A
2	Remove fuel injectors (Y76) on the respective cylinders of the broken off glow plugs (R9)	Model 164, 251	AR07.16-P-1000GZB
		Model 203, 209	AR07.16-P-1000PI
		Model 204	AR07.16-P-1000CO
		Models 207, 212, 221	AR07.16-P-1000SXI
		Model 211	AR07.16-P-1000TI
		MODEL 219.322	AR07.16-P-1000TQ
		MODEL 463	AR07.16-P-1000GY
3	Remove rail on the respective cylinder bank of the broken off glow plugs (R9)	Model 164, 251	AR07.03-P-1010GZB
		Model 203, 209	AR07.03-P-1010PI
		Model 204	AR07.03-P-1010CO
		Models 207, 212, 221	AR07.03-P-1010SXI
		Model 211	AR07.03-P-1010TI
		MODEL 219.322	AR07.03-P-1010TQ
		MODEL 463	AR07.03-P-1010GY
4	Bore out broken off glow plugs (R9)		AR15.20-P-4112-01OG
		Bolt connecting cylinder head cover to cylinder head	*BA01.20-P-1001-01P
		Glow plug to cylinder head	*BA15.20-P-1001-01F
		Glow plug repair kit, M8	Fig 2
5	Install in the reverse order

CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number	Designation			Engine 642
BA01.20-P-1001-01P	Bolt, cylinder head cover to cylinder head	Stage 1, apply	Nm	4
		Stage 2, initial torque	Nm	6
		Stage 3, final torque	Nm	9

GLOW PLUG SYSTEM

Number	Designation			Engine 642
BA15.20-P-1001-01F	Glow plug on cylinder head	M8	Nm	11
BA15.20-P-1001-01F	Glow plug on cylinder head	M10	Nm	18

Fig 2: Identifying Glow Plug Repair Kit, M8 (642 589 00 99 00)

Courtesy of MERCEDES-BENZ USA
