Redrill glow plug - AR15.20-P-4112-01OG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
HEADLESS SCREWS: BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation Model all
BA00.10-P-1002-01A M6 8.8 Galvanized Nm 9
Phosphated Nm 9
10.9 Galvanized Nm 13
Phosphated Nm 12
12.9 Galvanized Nm 16
Phosphated Nm 14
Fig 1: Identifying Glow Plug Repair Kit (642 589 01 99 00)
G10120134Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Glow Plug Repair Kit, M8 (642 589 00 99 00)
G07253158Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Record Plug (611 589 00 91 00)
G09975131Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1017-06A MB multipurpose grease A 001 989 34 51 11
BR00.45-Z-1093-06A Multipurpose oil A 000 989 84 01

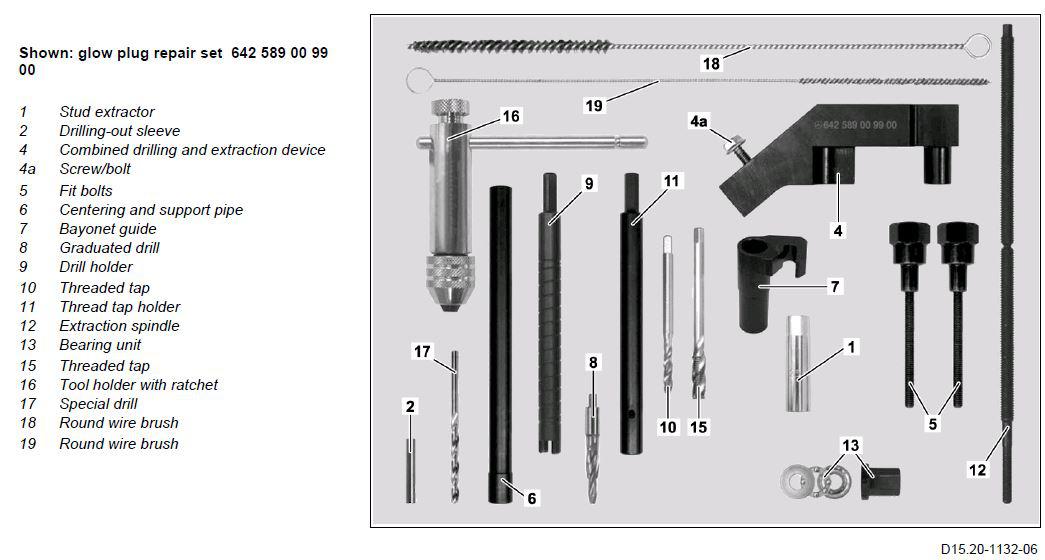

Fig 4: Glow Plug Repair Set 642 589 00 99 00
G00565028Courtesy of MERCEDES-BENZ USA

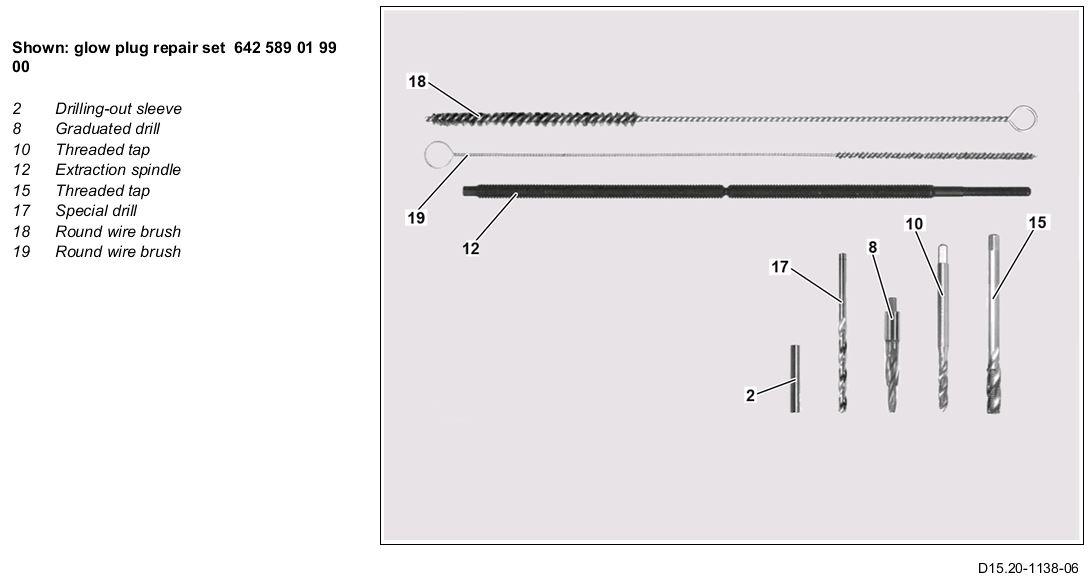

Fig 5: Glow Plug Repair Set 642 589 01 99 00
G00565029Courtesy of MERCEDES-BENZ USA

IMPORTANT Use the following special tool: SPECIAL TOOL Glow plug repair kit, M8 642 00 99 00.

For a glow plug thread M10x1 also use: SPECIAL TOOL Glow plug repair set 642 589 01 99 00.

NOTES After every chip cutting machining operation step immediately suction up the chips created or clean the bores with a round wire brush (18, 19). Damage may occur on the engine otherwise.

Prepare the glow plug

Fig 6: Tearing Off Center Electrode Of Glow Plug
G07253160Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Place the stud extractor (1) for a 4 mm dia. on the pin of the cap of the glow plug and tear off the center electrode of the glow plug clockwise.

    IMPORTANT Remove all loose and released parts.

    2. Fig 7: Hammering In Drill-Out Sleeve
    G07253161Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  2. Again tear off the center electrode of the glow plug using the stud extractor (1) for a 2.5 mm dia..

    If the center electrode of the glow plug is broken not on the lower end but rather immediately behind the cap of the electrical connection.

    If renewed tearing off of the center electrode of the glow plug is not possible

    ↓

    Hammer in the drill-out sleeve (2) using a hammer and punch flush into the glow plug

    ↓

    Cut off the projecting out part of the drill-out sleeve (2) flush using a side cutting pliers

    NOTES The drill-out sleeve (2) is beveled; the arrow on the drill-out sleeve (2) must point to the cylinder head. Damage may occur otherwise on the cylinder head.

    IMPORTANT In order to stabilize the center electrode for drilling out.

    IMPORTANT For glow plug thread M8x1 use a drill-out sleeve (2) with an inside diameter of 2.6 mm. For glow plug thread M10x1 use a drill-out sleeve (2) with an inside diameter of 3 mm.

    If the drill-out sleeve (2) cannot be hammered in flush

    3. Attach and align the boring out jig

    Fig 8: Removing Cylinder Head Cover Bolts
    G07253162Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  3. Remove screw/bolts (3) of the cylinder head cover in the area of the broken off glow plug.
    4. Fig 9: Placing Drilling And Extraction Device On Cylinder Head Cover
    G07253163Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  4. Mount combined drilling and extraction device (4) with fit bolts (5) on the cylinder head cover.

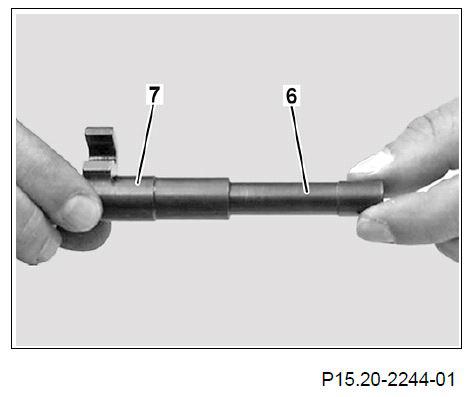

    5. Fig 10: Bayonet Guide, Centering And Support Pipe
    G00565030Courtesy of MERCEDES-BENZ USA
  5. Lead the centering and support pipe (6) with the thinner diameter from below into the bayonet guide (7).

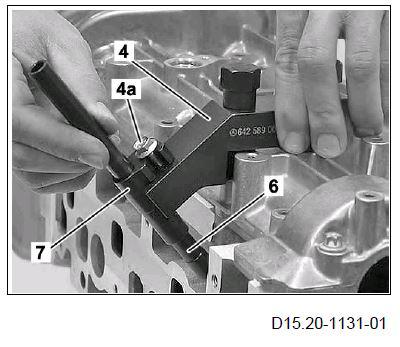

    6. Fig 11: Bayonet Guide, Centering And Support Pipe, Extraction Device And Screw/Bolt
    G00565251Courtesy of MERCEDES-BENZ USA
  6. Attach the bayonet guide (7) with the centering and support pipe (6) to the combined drilling and extraction device (4) and tighten the screw/bolt (4a) TORQUE SPECIFICATION .
  7. Push the centering and support pipe (6) into the glow plug well and center it.

    IMPORTANT Through turning the combined drilling and extraction device (4) center the centering and support pipe (6) in such a way that it is aligned with the glow plug.

  8. Tighten fit bolts (5) TORQUE SPECIFICATION .

    IMPORTANT After tightening the fit bolts (5) the centering and support pipe (6) it must still be possible to introduce it into the glow plug well and to pull it out again without special use of force. If not, repeat the centering process.

  9. Detach bayonet guide (7) from the combined drilling and extraction device (4) and remove centering and support pipe (6).
  10. Mount the bayonet guide (7) on the combined drilling and extraction device (4).

    11. Redrill glow plug

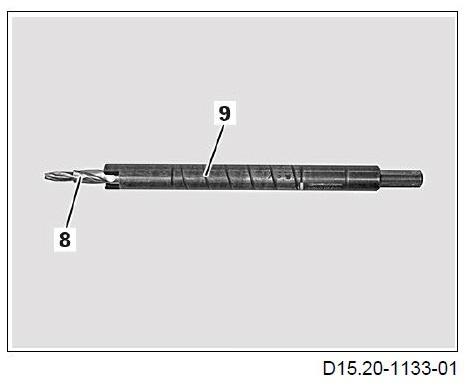

    Fig 12: Clamping The Graduated Drill Into The Drill Holder
    G00565252Courtesy of MERCEDES-BENZ USA
  11. Clamp the graduated drill (8) into the drill holder (9) and lubricate the graduated drill (8) as well as the drill holder (9).

    IMPORTANT For a glow plug thread M8x1 use the graduated drill (8) with an inscription M8. For a glow plug thread M10x1 use the graduated drill (8) with an inscription M10.

    12. Fig 13: Introducing Drill Holder With Graduated Drill Into The Bayonet Guide
    G07253165Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  12. Introduce the drill holder (9) with graduated drill (8) into the bayonet guide (7) and position and center glow plug 2 to 3 mm deep.

    If a drill-out sleeve (2) was previously stamped in.

    IMPORTANT For a glow plug thread M8x1 use the graduated drill (8) with an inscription M8. For a glow plug thread M10x1 use the graduated drill (8) with an inscription M10.

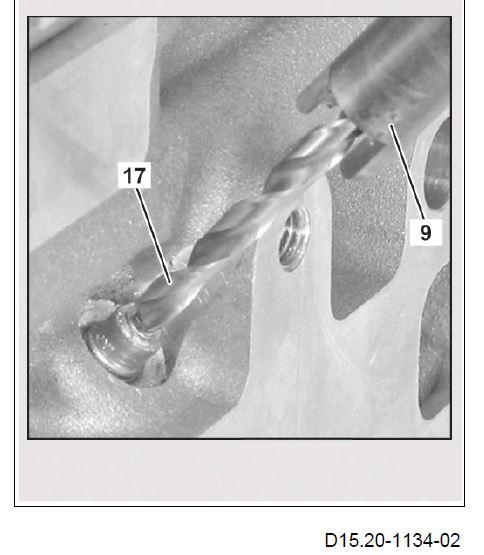

    13. Fig 14: Clamping The Special Drill Into The Drill Holder
    G00565253Courtesy of MERCEDES-BENZ USA
  13. Clamp the special drill (17) into the drill holder (9) and lubricate the special drill (17) as well as the drill holder (9).

    If a drill-out sleeve (2) was previously stamped in.

    IMPORTANT For a glow plug thread M8x1 use the special drill (17) with a 4.5 mm dia. For a glow plug thread M10x1 use the special drill (17) with a 5.5 mm dia.

  14. Drill out the center electrode of the glow plug until the drill holder (9) almost touches the cylinder head.

    If a drill-out sleeve (2) was previously stamped in.

    15. Fig 15: Clamping The Graduated Drill Into The Drill Holder
    G00565252Courtesy of MERCEDES-BENZ USA
  15. Clamp the graduated drill (8) into the drill holder (9) and lubricate the graduated drill (8) as well as the drill holder (9).

    If a drill-out sleeve (2) was previously stamped in.

    IMPORTANT For a glow plug thread M8x1 use the graduated drill (8) with an inscription M8. For a glow plug thread M10x1 use the graduated drill (8) with an inscription M10.

    16. Fig 16: Guide Adapter, Drill Holder And Stem Marking
    G07253166Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  16. Introduce the drill holder (9) with graduated drill (8) into the bayonet guide (7) and drill out the glow plug thread at the core up to the marking (A).

    IMPORTANT Through multiple putting down of the graduated drill (8) bore out the glow plug thread at the core until the marking (A) on the drill holder (9) reaches the upper edge of the bayonet guide (7).

  17. Remove the drill holder (9) with graduated drill (8) from the bayonet guide (7).
  18. Clean opening.
    Fig 17: Clamping The Graduated Drill Into The Thread Tap Holder
    G07253167Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  19. Clamp the graduated drill (10) into the thread tap holder (11) and lubricate the graduated drill (10) as well as the thread tap holder (11).

    IMPORTANT For a glow plug thread M8x1 use the thread tap (10) with the inscription UNF No. 12. For a glow plug thread M10x1 use the thread tap (10) with the inscription UNF 1/4".

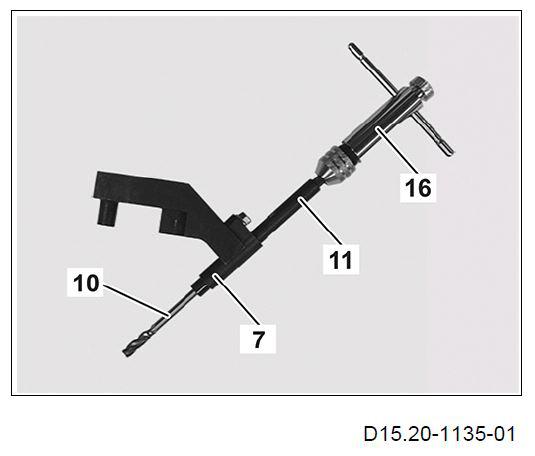

    20. Fig 18: Thread Tap Holder, Thread Tap, Bayonet Guide And Ratchet
    G00565254Courtesy of MERCEDES-BENZ USA
  20. Introduce the thread tap holder (11) with thread tap (10) into the bayonet guide (7).
  21. Mount the tool holder with ratchet (16) on thread tap holder (11) and cut a thread in the glow plug body.

    IMPORTANT Cut the thread as a right-hand thread as deep as possible into the glow plug body. Lubricate the thread tap (10) a number of times in the process.

  22. Remove the thread tap (10) with graduated drill (11) from the bayonet guide (7).
  23. Clean opening.
    24. Fig 19: Drilling Center Electrode Of Glow Pin
    G07253165Courtesy of MERCEDES-BENZ USA
  24. Lubricate the graduated drill (8) and the drill holder (9).

    IMPORTANT For a glow plug thread M8x1 use the graduated drill (8) with an inscription M8. For a glow plug thread M10x1 use the graduated drill (8) with an inscription M10.

  25. Introduce the drill holder (9) with graduated drill (8) through the bayonet guide (7).
  26. Bore out the remaining glow plug thread.

    IMPORTANT Through multiple application (putting down) of the graduated drill (8) bore out the glow plug thread until the drill holder (9) almost stands on the cylinder head.

  27. Pull the drill holder (9) with a graduated drill (8) out of the bayonet guide (7).
  28. Clean opening.
    29. Fig 20: Graduated Drill And Thread Tap Holder
    G07253167Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  29. Lubricate the thread tap (10) and the thread tap holder (11).

    IMPORTANT For a glow plug thread M8x1 use the thread tap (10) with the inscription UNF No. 12. For a glow plug thread M10x1 use the thread tap (10) with the inscription UNF 1/4".

    Fig 21: Thread Tap Holder, Thread Tap, Bayonet Guide And Ratchet
    G00565254Courtesy of MERCEDES-BENZ USA
  30. Introduce the thread tap holder (11) with thread tap (10) into the bayonet guide (7).
  31. Cut the thread further into the glow plug holder.

    IMPORTANT Cut the thread as a right-hand thread as deep as possible into the glow plug body. Lubricate the thread tap (10) a number of times in the process.

  32. Remove the thread tap (10) and pull out with thread tap holder (11) from the bayonet guide (7).
  33. Clean opening.
    34. Fig 22: Extraction Spindle, Bayonet Guide, Centering And Support Pipe
    G07253168Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  34. Screw in the extraction spindle (12) through the bayonet guide (7) into the previously cut thread.

    IMPORTANT For a glow plug thread M8x1 use the extraction spindle (12) with thread UNF No. 12. For a glow plug thread M10x1 use the extraction spindle (12) with thread UNF 1/4".

  35. Lead the centering and support pipe (6) with the thinner diameter from below into the bayonet guide (7) and glow plug well.
  36. Grease the extraction spindle (12).
    37. Fig 23: Screwing Bearing Unit Onto The Extraction Spindle
    G07253169Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  37. Screw bearing unit (13) onto the extraction spindle (12).
    38. Fig 24: Glow Plug
    G07253171Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  38. Counterhold the extraction spindle (12) and remove the remains of the glow plug (14) by turning the bearing unit (13).

    NOTES Always counterhold the extraction spindle (12) by turning the bearing unit (13)! Damage may occur otherwise on the cylinder head.

    IMPORTANT For very sluggish extraction processes of the bearing unit (13) loosen again and carefully tap the end of the extraction spindle (12) with a hammer.

    39. Fig 25: Cleaning Glow Pin Bore
    G07253170Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  39. Clean glow plug hole with round wire brushes (18, 19) free of soot and deposits.

    40. Recut the glow plug thread in the cylinder head

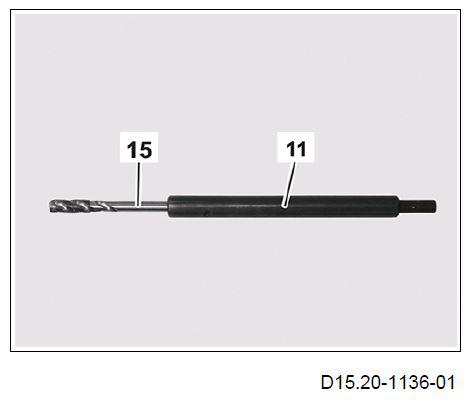

    Fig 26: Clamping The Thread Tap Into The Thread Tap Holder
    G00565255Courtesy of MERCEDES-BENZ USA
  40. Insert a grommet from the set of stop plug in the glow plug hole.
  41. Clamp the thread tap (15) into the thread tap holder (11) and fill the flutes of the thread tap (15) with grease.

    IMPORTANT For glow plug thread M8x1 use the thread tap (15) with an inscription M8x1. For glow plug thread M10x1 use the thread tap (15) with an inscription M10x1.

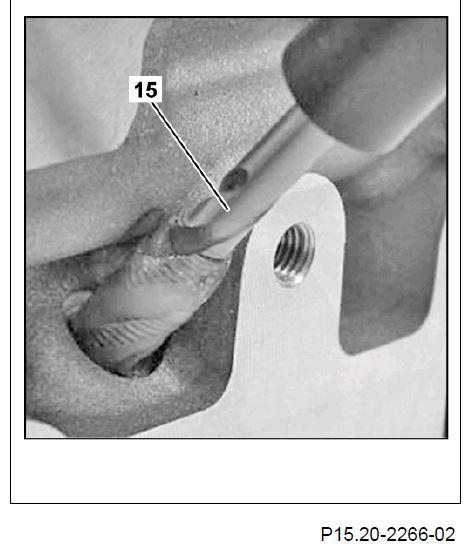

    42. Fig 27: Thread Tap
    G00565256Courtesy of MERCEDES-BENZ USA
  42. Introduce the thread tap holder (11) with thread tap (15) into the bayonet guide (7).
  43. Recut the fastening thread of the glow plug in the cylinder head clean.
  44. Remove the thread tap holder (11) with thread tap (15) from the bayonet guide (7).
  45. Clean the fastening thread of the glow plug in the cylinder head and the glow plug hole.
  46. Check the fastening thread of the glow plug in the cylinder head for damage.

    If the glow plug thread is damaged repair the glow plug thread using the thread repair set

  47. Remove the grommet from the glow plug hole.

    48. Remove the boring out jig

    Fig 28: Fit Bolts, Drilling And Extraction Device
    G07253163Courtesy of MERCEDES-BENZ USA
  48. Detach the bayonet guide (7) from the combined drilling and extraction device (4).
  49. Remove fit bolts (5) and remove the combined drilling and extraction device (4).
    50. Fig 29: Cylinder Head Cover Bolts
    G07253162Courtesy of MERCEDES-BENZ USA
  50. Fully tighten screw/bolts (3).
