Remove/install low-temperature circuit expansion reservoir with carrier - AR09.41-P-0002ELS
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.8 in MODEL 207, 212, 218
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove low-temperature circuit expansion reservoir | AR09.41-P-0001ELS | |
| 2 | Detach boost pressure control pressure transducer and place with attached lines to one side | AR07.17-P-7002ELS | |

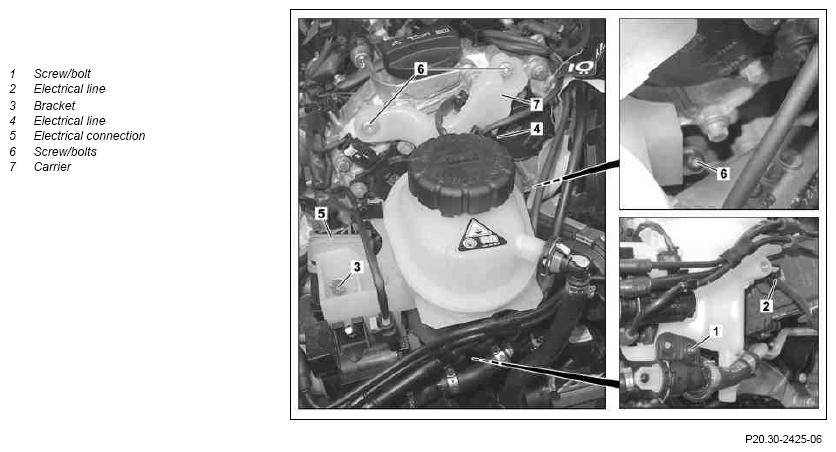

| 3 | Remove screw/bolt (1) | ||
| 4 | Unclip electrical line (2) from carrier (7) | ||
| 5 | Detach electrical line for pressure sensor upstream of throttle valve on carrier (7) | ||
| 6 | Unclip bracket (3) from carrier (7) | ||
| 7 | Detach electrical line (4) from carrier (7) | ||
| 8 | Disconnect electrical connection (5) | ||
| 9 | Remove screw/bolts (6) | *BA20.10-P-1009-01AA | |
| *BA20.10-P-1010-01AA | |||
| 10 | Remove carrier (7) | ||
| 11 | Install in the reverse order |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA20.10-P-1009-01AA | Bolt, bracket for expansion reservoir to cylinder head cover | Nm | 9 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA20.10-P-1010-01AA | Bolt, bracket for expansion reservoir to cylinder head | Nm | 9 |
