Remove/install low-temperature circuit expansion reservoir - AR09.41-P-0001ELS
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.8 in MODEL 207, 212, 218
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove engine cover | ||
| 3 | Remove right engine air intake duct | ||

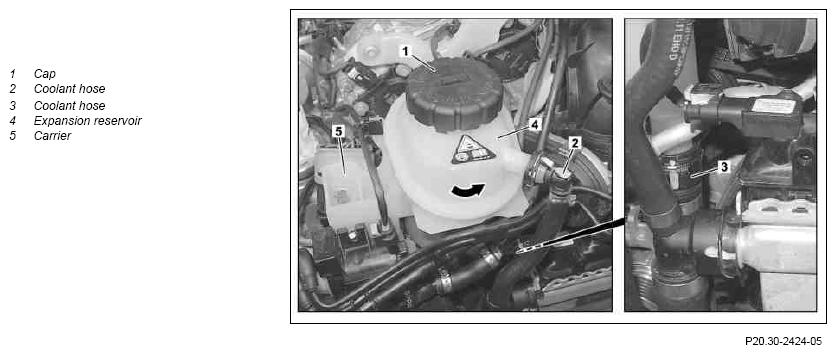

| 4 | Slowly open cap (1) on expansion reservoir (4) and remove it | ||
| 5 | Suction coolant out of expansion reservoir (4) | Fig 3 | |
| 6 | Detach coolant hose (2) from expansion reservoir (4) | AR20.20-P-7441-01RQ | |
| 7 | Detach coolant hose (3) from expansion reservoir (4) | Fig 2 | |
| 8 | Remove expansion reservoir (4) upwards | ||
| 9 | Install in the reverse order | ||
| Check | |||
| 10 | Check coolant level and correct if necessary | ||
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| 11 | Check engine cooling system for leaktightness | ENGINE 276.8 in MODEL 212, 218 | AR20.00-P-1010EL |
| MODEL 207 with ENGINE 276.8 | AR20.00-P-1010ELA | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Carry out engine test run and, in doing so, check the engine cooling system for proper operation and leaktightness |
