Remove/install low temperature water circuit radiator - AR09.41-P-6935ELS
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.8 in MODEL 207, 212, 218
Shown on model 212
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning
from swallowing coolant. Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | ||
| Remove/install | |||
| 1 | Remove radiator | MODEL 207 with ENGINE 276.8 | AR20.20-P-3865ELA |
| MODEL 212, 218 with ENGINE 276.8 | AR20.20-P-3865EL | ||
| 2 | Detach charge air cooler circulation pump (M44), place to one side and secure against falling down | ENGINE 276.8 in MODEL 207 | AR09.41-P-6925ELS |
| 3 | Drain coolant from low-temperature circuit | AR09.41-P-6925ELS | |
| Notes on coolant | AH20.00-N-2080-01A | ||

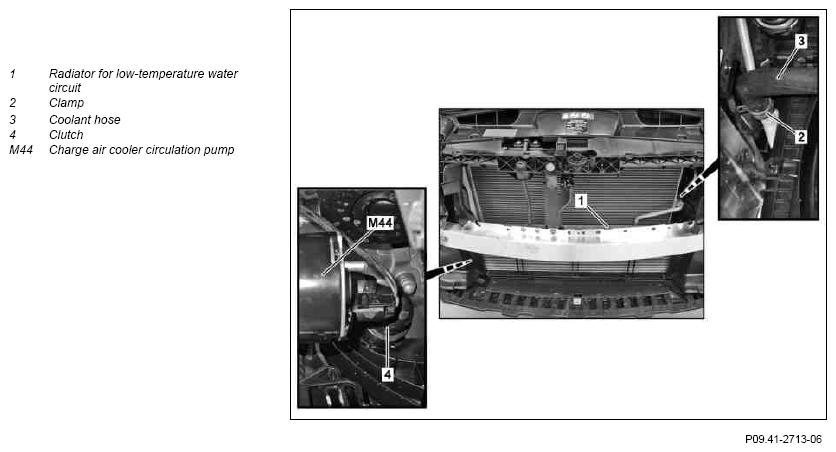

| 4 | Disconnect hose (4) at cooler for low-temperature water circuit (1) | AR20.20-P-7441-01RQ | |
| 5 | Unclip radiator for low-temperature water circuit (1) from radiator support and remove upwards | ||
| Check | |||
| 6 | Check radiator for low-temperature water circuit (1) | If damage is present: ↓ Replace radiator for low-temperature water circuit (1) |
|
| 7 | Install in the reverse order | ||
| 8 | Check engine cooling system for leaktightness | MODEL 207 with ENGINE 276.8 | AR20.00-P-1010ELA |
| MODEL 212, 218 with ENGINE 276.8 | AR20.00-P-1010EL | ||
| 9 | Check low-temperature circuit low temperature cooling system for leaktightness | MODEL 207 with ENGINE 276.8 | AR20.00-P-1010ELA |
| MODEL 212, 218 with ENGINE 276.8 Mount tester cap on low-temperature circuit coolant expansion reservoir. |
AR20.00-P-1010EL | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Carry out engine test run and check the engine cooling system for leaktightness and for proper function |
