Remove/install low temperature water circuit radiator - AR09.41-P-6935EHV

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 276.9 in MODEL 212.095/195

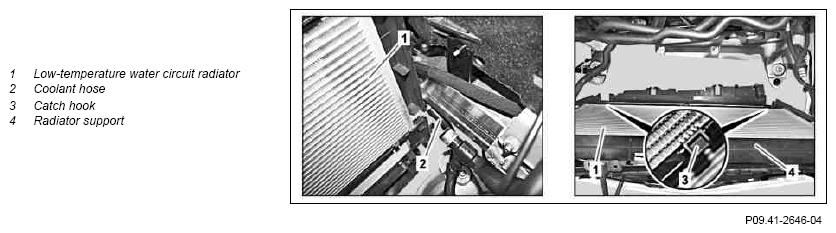

Fig 1: Low Temperature Water Circuit Radiator Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on coolant level		AH20.00-P-1142-01CW
	Notes on coolant		AH20.00-N-2080-01A
1	Remove radiator		AR20.20-P-3865EL
2	Disconnect coolant hose (2) at low-temperature water circuit radiator (1)	Check coolant hose (2) and hose clamp and for damage; replace if necessary.
2		Hose clamp pliers	Figure
3	Unclip low-temperature water circuit radiator (1) at the catch hook (3) for radiator support (4) and remove upwards
4	Install in the reverse order

Fig 2: Identifying Hose Clamp Pliers (003 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
