Remove/install charge air cooler - AR09.41-P-6817CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 271, 642, 646, 651 in MODEL 204
ENGINE 271, 642, 651 in MODEL 207
ENGINE 271, 642, 651 in MODEL 212
ENGINE 271, 651 in MODEL 172
ENGINE 642, 651 in MODEL 218

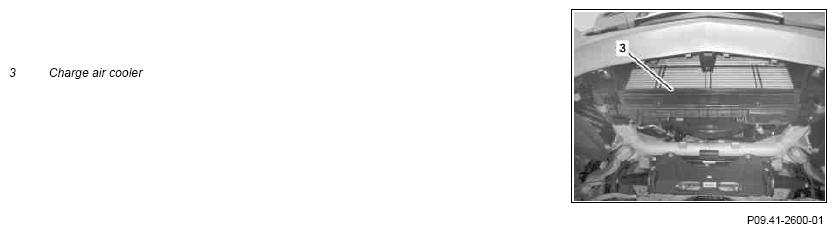

Illustration shows model 204
Illustration shows model 204
Shown: model 218
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove lower engine compartment paneling or bottom section of soundproofing | MODEL 204.9 | AR61.20-P-1105CY |
| Vehicles with gasoline engine except model 172, 204.9 | AR61.20-P-1105EW | ||
| Model 172 with gasoline engine | AR61.20-P-1105W | ||
| Model 172 with diesel engine | AR94.30-P-5300W | ||
| Model 204, 207, 212, 218 with diesel engine except model 204.9 | AR94.30-P-5300EW | ||
| 2 | Remove center reinforcement at the front | All except model 172 ENGINE 271, 642, 646, 651 in MODEL 204 |
AR62.30-P-1570CW |
| ENGINE 271, 642, 651 in MODEL 207 ENGINE 271, 642, 651 in MODEL 212 |
AR62.30-P-1570EW | ||
| ENGINE 642, 651 in MODEL 218 | AR62.30-P-1570EL | ||
| 3 | Remove cold air intake at the front | Only on model 172 Vehicles with gasoline engine |
AR20.40-P-5050W |
| Vehicles with diesel engine | AR20.40-P-5050CW | ||
| 4 | Press unlocking fishplates (14) apart (arrows) and unclip air ducting below (13) on left and right out of the fan unit (10) | ||
| 5 | Disconnect electrical connection on outside temperature sensor (B14) and expose electrical line (1) | ||
| 6 | Unclip electrical line (2) for refrigerant pressure sensor (B12) from the air ducting below (13) | ||
| 7 | Unfasten charge air ducts on charge air cooler (3) | ||
| 8 | Raise radiator module upwards and put down in direction of engine | Model 172, 204, 207, 212 | |
| 9 | Unclip charge air cooler (3) below on both sides | ||
| 10 | Extend charge air cooler (3) out of the upper suspension downwards | Model 218 | |
| 11 | Take out charge air cooler (3) | ||
| 12 | Install in the reverse order |
