Disassemble/assemble K3 clutch - AR27.51-P-0830W

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.9, 724.2

MODIFICATION NOTES

26.8.14 "Remove main components of the transmission" added. Operation step 1
26.8.14 "Install main components of the transmission" added. Operation step 16

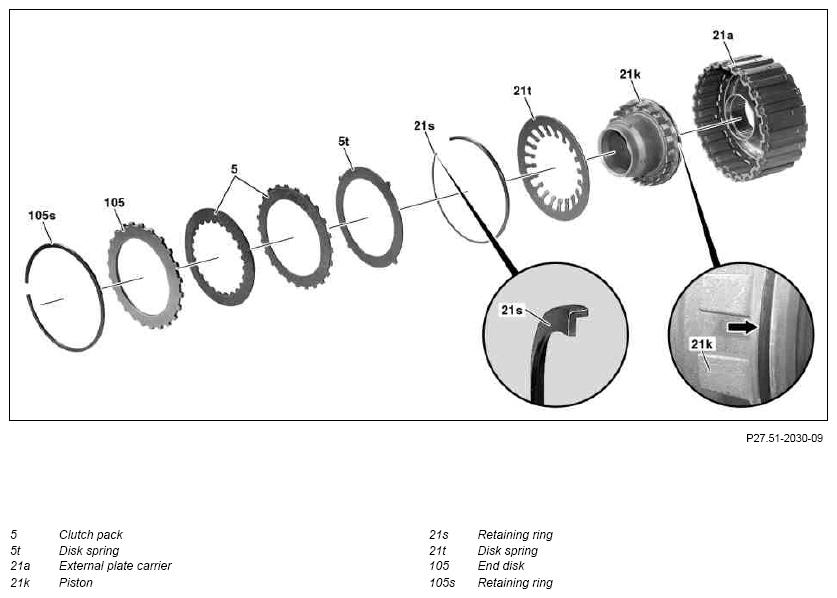

Fig 1: K3 Clutch Components (1 Of 2)
G09975866Courtesy of MERCEDES-BENZ USA

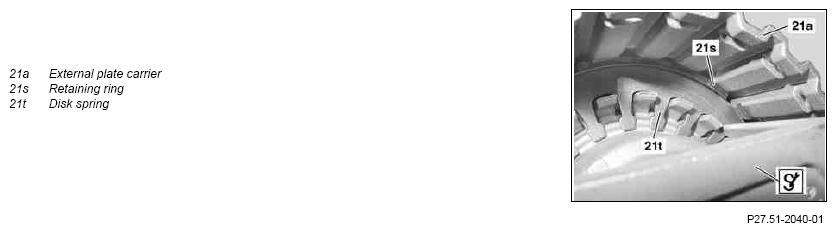

Fig 2: K3 Clutch Components (2 Of 2)
G09975867Courtesy of MERCEDES-BENZ USA
IMPORTANT Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVING Remove
1 Remove main components of transmission   AR27.50-P-0610W
DISASSEMBLING Disassemble
2 Remove retaining ring (105s) and end disk (105)
3 Remove clutch pack (5) and disk spring (5t) IMPORTANT Check disks for scorch marks and wear.
4 Attach assembly device to disk spring (21t) and stretch the disk spring (21t) until the retaining ring (21s) is free SPECIAL TOOL Assembly device Figure
5 Remove retaining ring (21s)
6 Remove assembly device
7 Remove disk spring (21) and piston (21k) from external plate carrier (21a). IMPORTANT Check sealing ring (arrow) and thrust faces for damage and swirl marks.
ASSEMBLING Assemble
8 Install piston (21k) into external plate carrier (21a)
9 Insert disk spring (21t) IMPORTANT Insert disk spring (21t) in such a way that the curvature of the inner circumference points toward the piston (21k).
10 Attach assembly device to disk spring (21t) and stretch the disk spring (21t) until the groove for the retaining ring (21s) is free SPECIAL TOOL Assembly device Figure
11 Install retaining ring (21s) NOTES Pay attention to the installation position of the retaining ring (21s).
Otherwise, the disk spring (5t) will become bent and malfunctions will occur.
12 Remove assembly device SPECIAL TOOL Assembly device Figure
13 Install disk spring (5t) and clutch pack (5) IMPORTANT Insert disk spring (5t) in such a way that the curvature of the inner circumference points toward the piston (21k).
Observe the installation sequence:
↓
Survey of multi-disk components, production details
REFER TO BASIC KNOWLEDGE TRANSMISSION 722.9 GF27.51-P-5200W
14 Install end disk (105) and retaining ring (105s)
15 Measure and adjust clearance TRANSMISSION 722.9, 724.2 Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3 AR27.51-P-7229W
INSTALLING Install
16 Install main components of transmission   AR27.50-P-0610W
Fig 3: Identifying Assembly Device (140 589 13 43 00)
G09975868Courtesy of MERCEDES-BENZ USA
