Dismantle and assemble rear tubular shaft - AR27.50-P-0851W

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.9, 724.2

MODIFICATION NOTES

26.8.14	"Remove main components of the transmission" added.	Operation step 1
26.8.14	"Install main components of the transmission" added.	Operation step 6

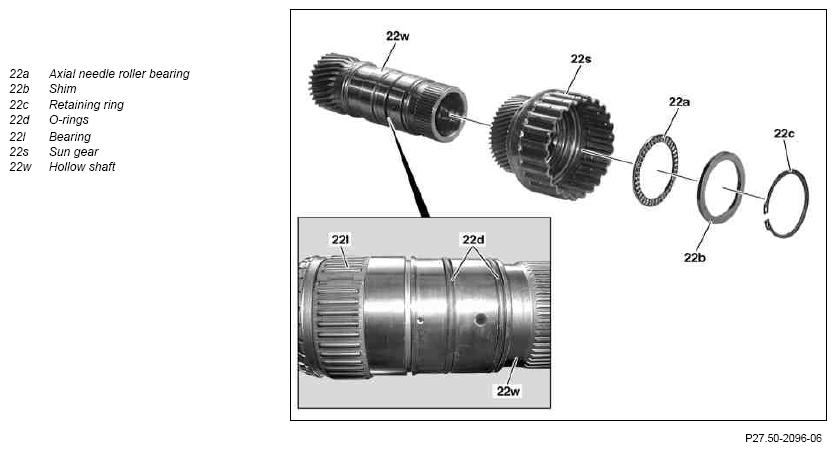

Fig 1: Rear Tubular Shaft Components - Shown On Transmission 722.9

Courtesy of MERCEDES-BENZ USA

	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove
1	Remove main components of transmission		AR27.50-P-0610W
	Disassemble/assemble
2	Remove retaining ring (22c), shim (22b) and axial needle roller bearing (22a)	The needles of the axial needle roller bearing (22a) must face toward the shim (22b). Check retaining ring (22c) is correctly seated.
3	Detach sun gear (22s) from hollow shaft (22w)	Replace O-rings (22d).
4	Remove bearing (22l)
5	Assemble in the reverse order
	Install
6	Install main components of transmission		AR27.50-P-0610W
