Remove/install solenoid camshaft - AR05.20-P-7295EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276 in MODEL 212, 218

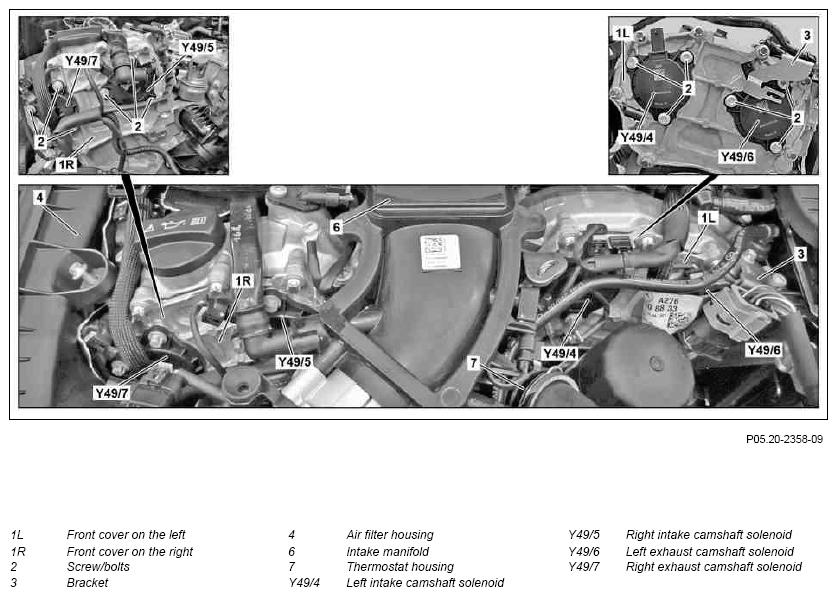

Shown on engine 276.9
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1.1 | Remove engine cover | ENGINE 276.8 in MODEL 212, 218 | |
| 1.2 | Remove front engine cover | ENGINE 276.9 in MODEL 212, 218 | |
| Remove LH exhaust camshaft solenoid (Y49/6) | |||
| 2 | Disconnect electrical connection from left exhaust camshaft solenoid (Y49/6) | ||
| 3 | Detach engine wiring harness bracket (3) on cylinder head cover | ENGINE 276.9 in MODEL 212, 218 | |
| *BA07.08-P-1006-01A | |||
| 4 | Detach screw/bolts (2) and LH exhaust camshaft solenoid (Y49/6) from left front cover (1L) | ||
| *BA05.20-P-1008-02A | |||
| Remove LH intake camshaft solenoid (Y49/4) | |||
| 5 | Unclip engine wiring harness on LH front cover (1L) | ENGINE 276.9 in MODEL 212, 218 | |
| 6 | Disconnect electrical connection on thermostat housing (7) | ||
| 7 | Disconnect electrical connection from left intake camshaft solenoid (Y49/4) | ||
| 8 | Detach screw/bolts (2) and LH intake camshaft solenoid (Y49/4) from right front cover (1L) | ||
| *BA05.20-P-1008-02A | |||
| Remove RH intake camshaft solenoid (Y49/5) | |||
| 9 | Remove air filter housing (4) | ENGINE 276.9 in MODEL 212, 218 | |
| *BA09.10-P-1001-01M | |||
| *BA09.10-P-1002-01M | |||
| 10 | Remove intake manifold (6) | ENGINE 276.9 in MODEL 212, 218 | |
| AR09.20-P-1961EL | |||
| 11 | Disconnect electrical connection on right intake camshaft solenoid (Y49/5) | ||
| 12 | Detach screw/bolts (2) and LH intake camshaft solenoid (Y49/5) from right front cover (1R) | ||
| *BA05.20-P-1008-02A | |||
| Remove RH exhaust camshaft solenoid (Y49/7) | |||
| 13 | Detach low-temperature circuit expansion reservoir with carrier and with attached coolant lines to one side and fix in place. | ENGINE 276.8 in MODEL 212, 218 | AR09.41-P-0002ELS |
| 14 | Remove air filter housing (4) | ENGINE 276.9 in MODEL 212, 218 | |
| *BA09.10-P-1001-01M | |||
| *BA09.10-P-1002-01M | |||
| 15 | Disconnect electrical connection from right exhaust camshaft solenoid (Y49/7) | ||
| 16 | Detach and set aside engine wiring harness from right front cover (1R) | ENGINE 276.9 in MODEL 212, 218 | |
| 17 | Detach screw/bolts (2) and RH exhaust camshaft solenoid (Y49/7) from right front cover (1R) | ||
| *BA05.20-P-1008-02A | |||
| 18 | Install in the reverse order | ||
| 19 | Check engine oil level; correct if necessary | ||
| AP18.00-P-0101CWZ | |||
| 20 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04A | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 21 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
CAMSHAFT, CAMSHAFT ADJUSTMENT
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA05.20-P-1008-02A | Screw/bolt, camshaft solenoid to front cover on cylinder head | Nm | 5 |
CONTROL UNIT
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA07.08-P-1006-01A | Bolt, connector housing holder to control unit holder | Nm | 9 |
AIR FILTER
| Number | Designation | ENGINE 276.9 | |
|---|---|---|---|
| BA09.10-P-1001-01M | Bolt, air filter to cylinder head cover | Nm | 9 |
AIR FILTER
| Number | Designation | ENGINE 276.9 | |
|---|---|---|---|
| BA09.10-P-1002-01M | Bolt, air filter to air intake pipe support brace | Nm | 9 |
