Remove/install right cylinder head cover - AR01.20-P-5012SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 207, 212, 218, 221

MODIFICATION NOTES

9.4.10

Value changed: bolt, cylinder head cover on cylinder head

*BA01.20-P-1001-01P

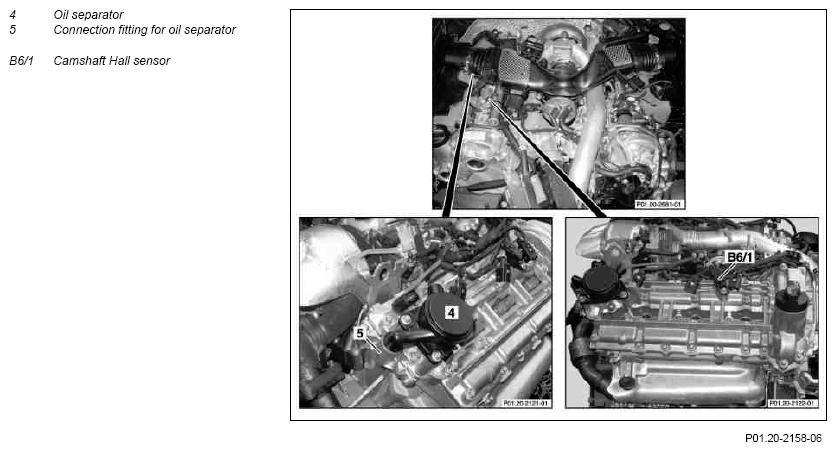

Fig 1: Right Cylinder Head Cover Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
1	Remove fuel injectors		AR07.16-P-1000SXI
2	Remove rail		AR07.03-P-1010SXI
3	Remove oil separator (4)	Model 207, 212, 218	AR01.20-P-9750CO
4	Remove connection fitting for oil separator (5)	Replace O-ring and radial shaft sealing ring.
5	Disconnect electrical connector at camshaft Hall sensor (B6/1)
6	Loosen cylinder head cover bolt in stages and remove	Slacken cylinder head bolts in the reverse sequence of the tightening procedure when the engine has cooled down so that the cylinder head cover is not warped.
		Bolt tightening procedure for cylinder head cover	AR01.20-P-5014-03SXI
		Pay attention to the tightening procedure and the tightening instructions for the cylinder head bolts so that the cylinder head cover is not warped and the camshafts are not damaged.
			*BA01.20-P-1001-01P
7	Remove right cylinder head cover	Detach cylinder head cover with impact extractor and threaded bolt and then remove.
		Threaded stud	Fig 3
		Impact extractor	Fig 2
		Loctite 5970 sealant	*BR00.45-Z-1013-01A
	Notes on sealant path for cylinder head cover		AH01.30-P-1000-08SXI
	Clean
8	Clean sealing surfaces on cylinder head cover and cylinder head	Do not use any sharp-edged tools and also no grinding paper otherwise the sealing surfaces will be damaged.	AR01.00-P-0050-01A
		Loctite 7200	*BR00.45-Z-1038-04A
		Loctite 7063 cleaning spray	*BR00.45-Z-1046-04A
9	Install in the reverse order
	Checking
10	Check engine oil level	In order to avoid measurement errors, vehicle must be parked on an even surface. Inspect engine oil level about 5 min. after switching off warm engine	AR18.00-P-3035-01SXI
		Engine 642 except code (474) Particulate filter	*BF18.00-P-1001-01A
		Engine 642 with code (474) Particulate filter	*BF18.00-P-1001-01S
11	Check for oil leaks with engine running
12	Check fuel system for leaks with engine running

CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number	Designation			Engine 642
BA01.20-P-1001-01P	Bolt, cylinder head cover to cylinder head	Stage 1, apply	Nm	4
		Stage 2, initial torque	Nm	6
		Stage 3, final torque	Nm	9

ENGINE LUBRICATION SYSTEM

Number	Designation			Engine 642.826/830/832/834/836/838/850/852/853/854/856/858/862/868 with particulate filter
BF18.00-P-1001-01S	Engine oil	Filling capacity (oil and filter change)	Liters	8.0
		Specifications for Operating Fluids	Specification	Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
			Specification	Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
			Specification	Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1

ENGINE LUBRICATION SYSTEM

Number	Designation			Engine 642.930 with particulate filter up to engine No. 64293040458147	Engine 642.930 with particulate filter starting from engine No. 64293040458148	Engine 642.932/961 with particulate filter
BF18.00-P-1001-01S	Engine oil	Filling capacity (oil and filter change)	Liters	9.5	8.0	8.0
		Specifications for Operating Fluids	Specifications	BB00.40-P-0228-51A	BB00.40-P-0228-51A	BB00.40-P-0228-51A
			Specifications	BB00.40-P-0229-31A	BB00.40-P-0229-31A	BB00.40-P-0229-31A
			Specifications	BB00.40-P-0229-51A	BB00.40-P-0229-51A	BB00.40-P-0229-51A

ENGINE LUBRICATION SYSTEM

Number	Designation			Engine 642.930 without particulate filter up to engine no. 64293040458147	Engine 642.930 without particulate filter as of engine no. 64293040458148	Engine 642.932/961 without particulate filter
BF18.00-P-1001-01A	Engine oil	Filling capacity (oil and filter change)	Liters	9.5	8.0	8.0
		Specifications for Operating Fluids	Specifications	BB00.40-P-0228-03A	BB00.40-P-0228-03A	BB00.40-P-0228-03A
			Specifications	BB00.40-P-0228-05A	BB00.40-P-0228-05A	BB00.40-P-0228-05A
			Specifications	BB00.40-P-0228-51A	BB00.40-P-0228-51A	BB00.40-P-0228-51A
			Specifications	BB00.40-P-0229-03A	BB00.40-P-0229-03A	BB00.40-P-0229-03A
			Specifications	BB00.40-P-0229-31A	BB00.40-P-0229-31A	BB00.40-P-0229-31A
			Specifications	BB00.40-P-0229-05A	BB00.40-P-0229-05A	BB00.40-P-0229-05A
			Specifications	BB00.40-P-0229-51A	BB00.40-P-0229-51A	BB00.40-P-0229-51A

Fig 2: Identifying Impact Extractor (116 589 20 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Threaded Stud (102 589 00 34 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Loctite 5970 sealant	A 003 989 98 20
BR00.45-Z-1038-04A	Loctite 7200	Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A	Loctite 7063 cleaning spray (150 ml)	A 001 986 71 71 10
