Bolt tightening procedure for cylinder head cover - AR01.20-P-5014-03SXI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 207, 212, 218, 221
MODIFICATION NOTES
| 9.4.10 | Value changed: bolt, cylinder head cover on cylinder head | *BA01.20-P-1001-01P |
CRANKCASE VENTILATION, CYLINDER HEAD COVER
| Number | Designation | Engine 642 | ||
|---|---|---|---|---|
| BA01.20-P-1001-01P | Bolt, cylinder head cover to cylinder head | Stage 1, apply | Nm | 4 |
| Stage 2, initial torque | Nm | 6 | ||
| Stage 3, final torque | Nm | 9 | ||
Tightening of bolts (1 to 30) should be according to the sequence given in the tightening pattern. Loosen bolts in reverse order.

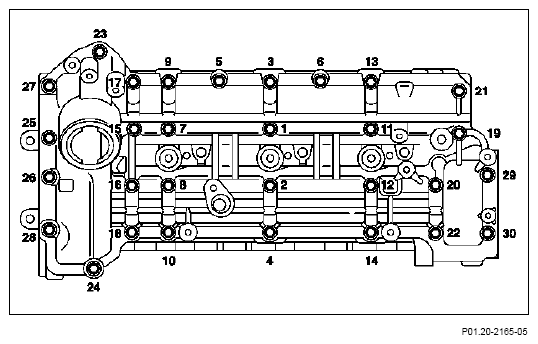

Shown on right cylinder head cover
Tighten bolts (1) up to (30) for the cylinder head cover in the specified numerical sequence.
- Tighten bolts (8 to 11) according to Stage 1.
- Tighten bolts (1 to 30) according to Stage 2.
- Tighten bolts (1 to 30) according to Stage 3.
Tighten bolts (1 to 28) for the cylinder head cover in the specified numerical sequence.
- Tighten bolts (8 to 11) according to Stage 1.
- Tighten bolts (1 to 28) according to Stage 2.
- Tighten bolts (1 to 28) according to Stage 3.

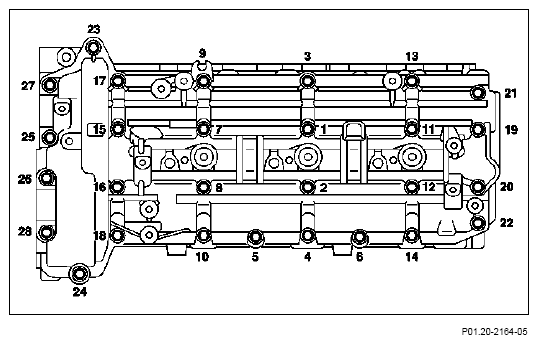

Shown on left cylinder head cover
