Remove/install centrifuge - AR01.20-P-2100ELB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 157, 278 in MODEL 212, 218
ENGINES 278 in MODEL 207
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove upper engine cover | ||
| 2 | Remove right air filter housing | ||
| 3 | Remove insulation on right rail | ||
| 4 | Detach starter wiring harness from crash plate and remove crash plate | See "Remove high-pressure pump". | AR07.02-P-1020ELB |
| 5 | Unclip vacuum line and starter wiring harness from bulkhead and set aside | ||
| 6 | Remove insulation from high-pressure pumps | See "Remove high-pressure pump". | AR07.02-P-1020ELB |
| 7 | Detach crankcase ventilation pipe (2) on cylinder head cover | ||
| 8 | Raise vehicle | ||
| 9 | Remove rear and center section of lower engine compartment paneling | AR61.20-P-1105EW | |
| 10 | Remove right catalytic converter | Model 207 | AR49.10-P-7100CW |
| Model 212, 218 | AR49.10-P-7100EL | ||
| 11 | Detach vacuum line (1) on intake manifold | ||

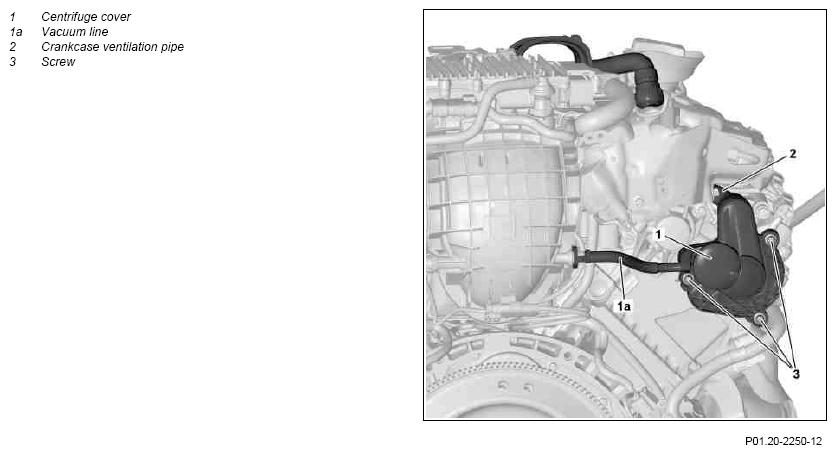

| 12 | Remove bolts (3) on centrifuge cover (1) from below | *BA01.20-P-1001-01L | |
| 13 | Remove centrifuge cover (1) from below | ||
| 14 | Remove bolt for centrifuge at the camshaft | *BA01.20-P-1002-01L | |
| 15 | Remove centrifuge from camshaft | ||
| Checking | |||
| 16 | Check seal and radial shaft sealing ring for wear and damage; replace centrifuge cover (1) if necessary | ||
| 17 | Check centrifuge for wear and damage; replace centrifuge if necessary | ||
| 18 | Install in the reverse order | ||
| 19 | Check engine oil level; correct if necessary | AP18.00-P-0101EW | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 20 | Conduct engine test run and check engine for leaks while it is running |
CRANKCASE VENTILATION, CYLINDER HEAD COVER
| Number | Designation | Engine 157 | Engine 278 | ||
|---|---|---|---|---|---|
| BA01.20-P-1001-01L | Bolt, centrifuge cover to cylinder head/cylinder head cover | Stage 1 | Nm | 6 | 6 |
| Stage 2 | ∠° | 90 | 90 | ||
| BA01.20-P-1002-01L | Bolt, centrifuge to camshaft sprocket | Stage 1 | Nm | 6 | 6 |
| Stage 2 | ∠° | 90 | 90 | ||
