Adjust front panoramic glass roof - AR77.21-P-0501EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.3, 207.3, 212.0/1/2 with CODE (413) Panoramic glass roof with top sliding roof

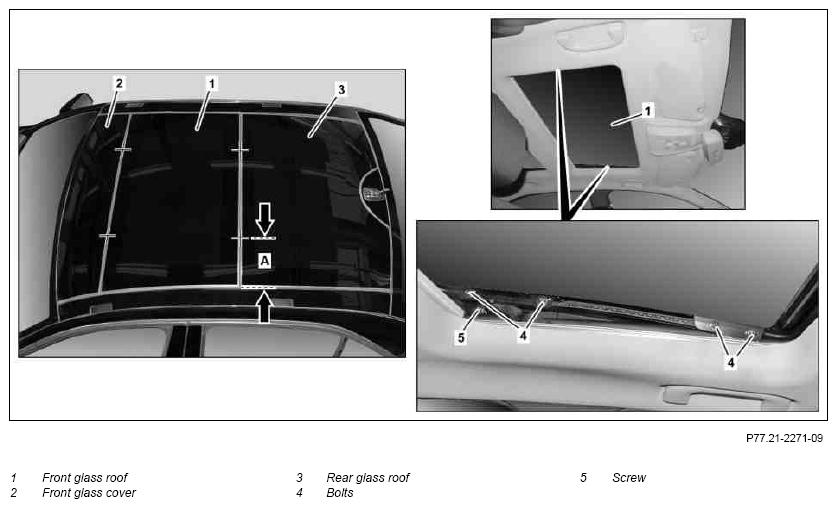

Shown on model 212.0
| Remove | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove rubbers from front glass roof (1) | AR77.21-P-0530EW | |
| 2 | Loosen bolts (5) on left and right outer support | Only if the transition from tilting to sliding and vice versa has to be adjusted or if the or if the front glass roof (1) has been replaced. | |
| 3 | Loosen bolts (4) on front glass roof (1) on both sides. | ||
| Adjust | |||
| 4 | Close front glass roof (1). | ||
| 5 | Adjust front glass roof (1). | *BE77.21-P-1001-01E | |
| 6 | Fix setting by tightening bolts (4) at both sides of front glass roof (1) | ||
| 7 | Move front glass roof (1) to tilt position | ||
| 8 | Tighten bolts (4) on both sides of front glass roof (1) | ||
| 9 | Press left and right outer support upward onto front glass roof (1) and tighten with bolts (5) | Only if the transition from tilting to sliding and vice versa has to be adjusted or if the front glass roof (1) has been replaced. | |
| 10 | Open front glass roof (1) and close again | ||
| 11 | Check gaps and height adjustment. | *BE77.21-P-1001-01E | |
| Install | |||
| 12 | Remove rubbers from front glass roof (1) | AR77.21-P-0530EW | |
| 13 | Teach in and normalize front glass roof (1) | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
TEST AND ADJUSTMENT VALUES OF PANORAMIC ROOF
| Number | Designation | Model 204 | Model 207.3 | ||
|---|---|---|---|---|---|
| BE77.21-P-1001-01E | Height setting | Measuring position "A" (X) | mm | 140 | 140 |
| Front: deeper than outer skin of roof | mm | 0 to 1 | 0 to 1 | ||
| Rear: higher than outer skin of roof | mm | 0 to 1 | 0 to 1 | ||
TEST AND ADJUSTMENT VALUES OF PANORAMIC ROOF
| Number | Designation | Model 212 | ||
|---|---|---|---|---|
| BE77.21-P-1001-01E | Height setting | Measuring position "A" (X) | mm | 140 |
| Front: deeper than outer skin of roof | mm | 0 to 1 | ||
| Rear: higher than outer skin of roof | mm | 0 to 1 | ||
