Remove/install drive cable for panoramic sunroof roller sun blind - AR77.21-P-0230EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166, 212.0/1/2 with CODE (413) Panoramic glass roof with top sliding roof
Shown on model 212.0 on right side of vehicle

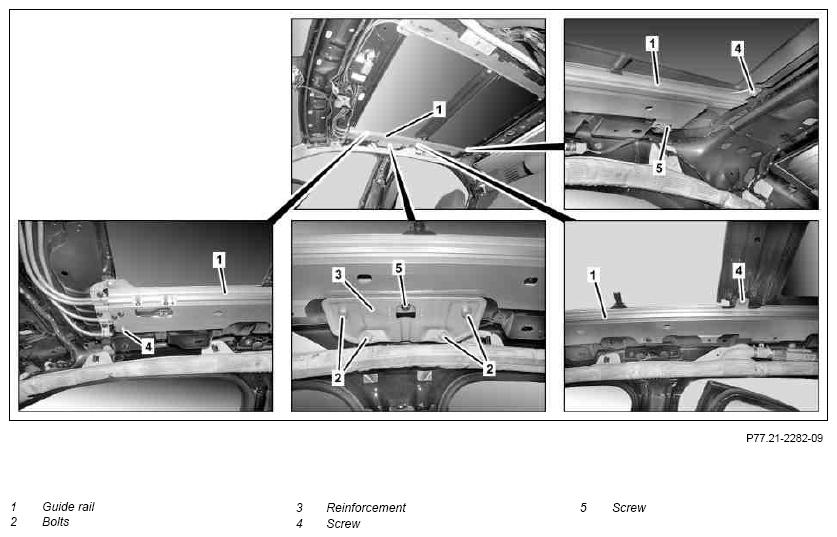

Fig 1: Drive Cable For Panoramic Sunroof Roller Sun Blind Remove/Install Components - Shown On Model 212.0 (1 Of 3)

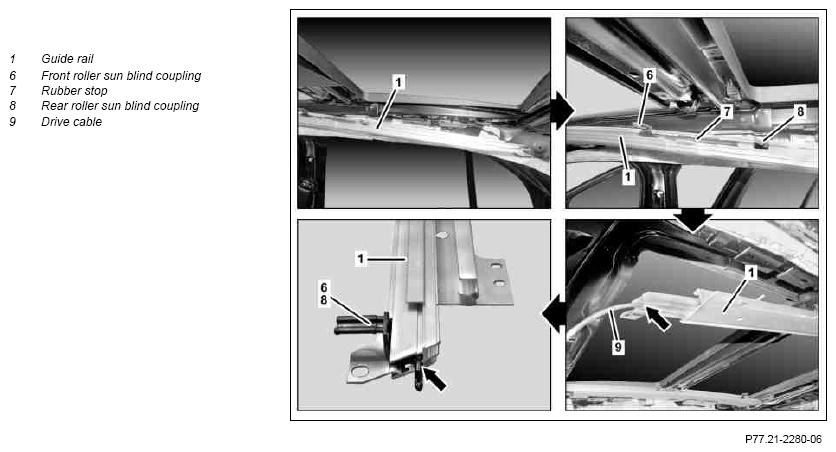

Fig 2: Drive Cable For Panoramic Sunroof Roller Sun Blind Remove/Install Components - Shown On Model 212.0 (2 Of 3)

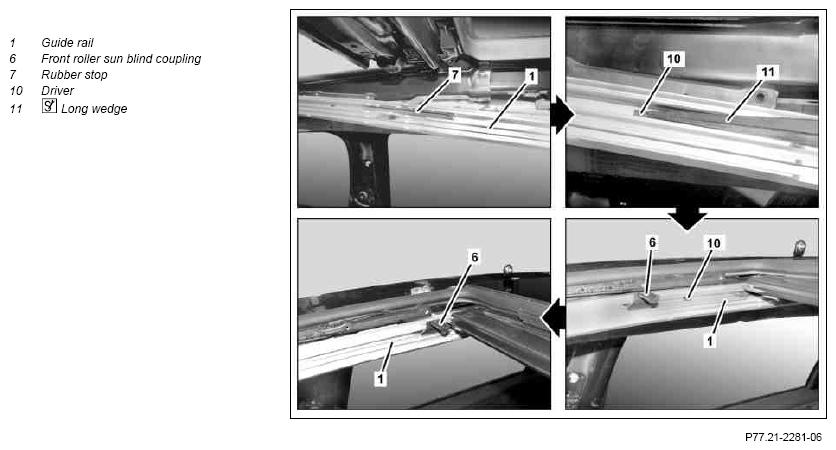

Fig 3: Drive Cable For Panoramic Sunroof Roller Sun Blind Remove/Install Components - Shown On Model 212.0 (3 Of 3)
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove front glass roof from panoramic sliding roof | Model 166 | AR77.21-P-0500GQ |
| Model 212.0, 1, 2 | AR77.21-P-0500EW | ||
| 2 | Remove roller sun blind from panoramic sliding roof | When moving front roller sun blind coupling (6), the driver (10) on the drive cable (9) is also moved. |
AR77.21-P-0215EW |
| 3 | Remove roller sun blind motor on panoramic sliding roof | ||
| Model 166 | AR77.21-P-0490GQ | ||
| Model 212.0, 1, 2 | AR77.21-P-0490EW | ||
| 4 | Unscrew bolts (2) and remove reinforcement (3) | Rechargeable drill/screwdriver | |
| 5 | Unscrew bolts (4, 5) and lower guide rail (1) | Rechargeable drill/screwdriver |
|
| 6 | Pull rear roller sun blind (8) toward rear out of guide rail (1) | ||
| 7 | Remove rubber stop (7) | ||
| 8 | Pull drive cable (9) with front roller sun blind coupling (6) out of guide rail (1) | ||
| Fig 4 | |||
| 9 | Install in the reverse order |
