Retrofit rear lamp unit - AZ82.10-P-0004EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1 up to 4/13/13 up to model year 2014
| Remove | |||

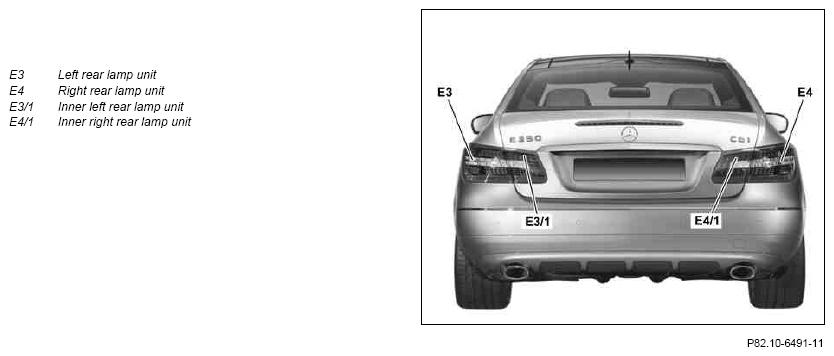

| Left rear lamp unit (E3) and right rear lamp unit (E4) | |||
| Remove/install taillamp | AR82.10-P-4905EW | ||
| Remove inner left rear lamp unit (E3/1) and inner right rear lamp unit (E4/1) | |||
| Remove/install taillamp, trunk lid | AR82.10-P-4915EC | ||
| Install | |||
| Install new darkened inner left rear lamp unit (E3/1) and inner right rear lamp unit (E4/1) | |||
| Remove/install taillamp, trunk lid | AR82.10-P-4915EC | ||
| Install new darkened left rear lamp unit (E3) and right rear lamp unit (E4) | |||
| Remove/install taillamp | AR82.10-P-4905EW | ||
| Document retrofitted equipment via vehicle documentation (VeDoc) | |||
| Check the function of the illumination |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (see EPC) | Headlamp unit | 4 |
