Remove/install taillamp, trunk lid - AR82.10-P-4915EC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207
MODEL 212.0/1

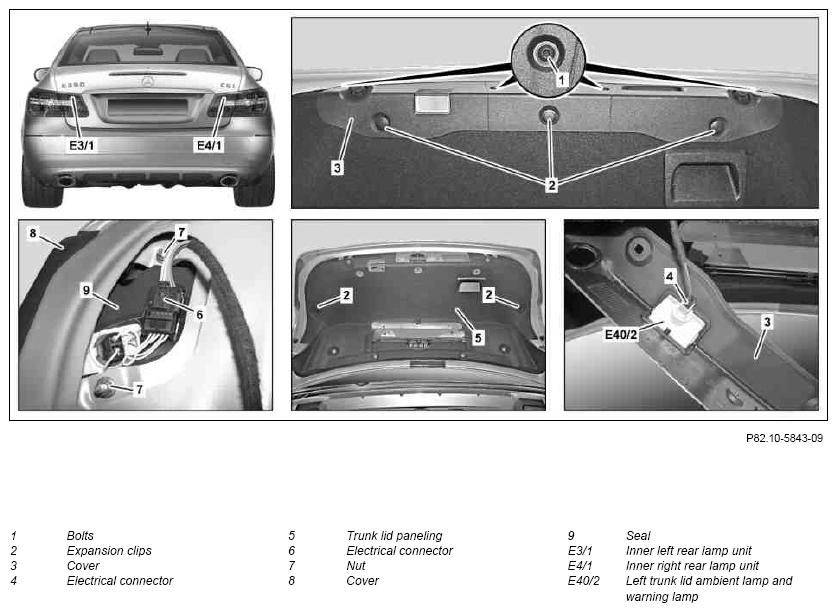

Illustrated on model 207.3

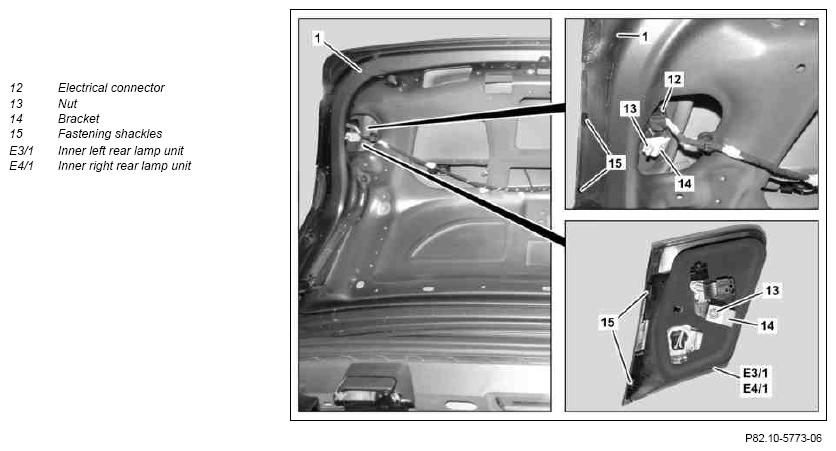

Model 212.0/1, shown on inner left rear lamp unit (E3/1) with removed trunk lid panel
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove bolts (1) | MODEL 207 | |
| 2 | Remove expansion clips (2) | Fig 3 | |
| 3 | Remove cover (3) from trunk lid and disconnect electrical connector (4) | ||
| 4 | Loosen trunk lid panel (5) until electrical connector (6) or electrical connector (12) is accessible | ||
| 5.1 | Disconnect electrical connector (6) | MODEL 207 | |
| 5.2 | Disconnect electrical connection (12) | MODEL 212.0/1 | |
| 6 | Unclip cover (8) at trunk lid and remove | MODEL 207 | |
| 7.1 | Unscrew nuts (7) | MODEL 207 | |
| 7.2 | Loosen nut (13) until bracket (14) detaches from trunk lid | MODEL 212.0/1 |
|
| 8 | Remove inner left rear lamp unit (E3/1) or inner right rear lamp unit (E4/1) | On model 212, check that mounting brackets (15) are seated correctly on trunk lid. |
|
| 9 | Install in the reverse order |
