Remove/install fuel pump control unit - AR47.20-P-5717EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with ENGINE 156, 157, 272, 273, 276, 278, 642 as of 1.9.09
MODEL 218 with ENGINE 157, 276, 278, 642, 651
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Connect up STAR DIAGNOSIS and read out variant coding from fuel pump control unit (N118) | When replacing the FSCU (N118). |
AD00.00-P-2000-04A |
| 2 | Remove rear seat cushion | Model 212 without code (224) Individual rear set system design | AR91.12-P-1020CW |
| Model 212 with code (224) Design rear bucket seats | AR91.12-P-1020EW | ||
| Model 218 | AR91.12-P-1020EL | ||

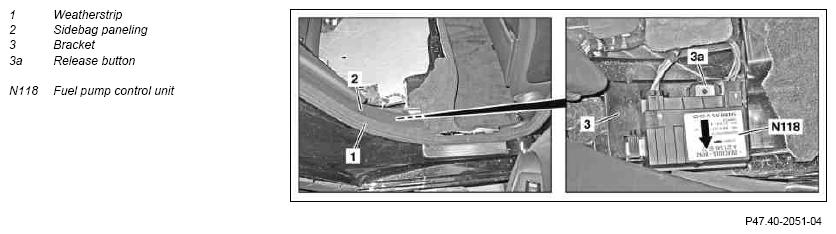

| 3 | Remove paneling on weatherstrip (1) | ||
| 4 | Detach weatherstrip (1) in the area of the FSCU (N118) | ||
| 5 | Unscrew nut for the right sidebag paneling (2) below | ||
| 6 | Carefully pull the sidebag paneling (2) upwards and place to one side | ||
| 7 | Push release button (3a) downwards and remove FSCU (N118) in direction of the arrow out of the bracket (3) | ||
| 8 | Unlock electrical connectors at fuel pump control unit (N118) and disconnect | ||
| 9 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 10 | Carry out engine test run |
