Remove/install fanfare horns - AR54.35-P-1555CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 (except 204.077), 204.2 (except 204.277)
MODEL 204.3 (except 204.377)
MODEL 204.9
MODEL 212 (except 212.077/277)
MODEL 218

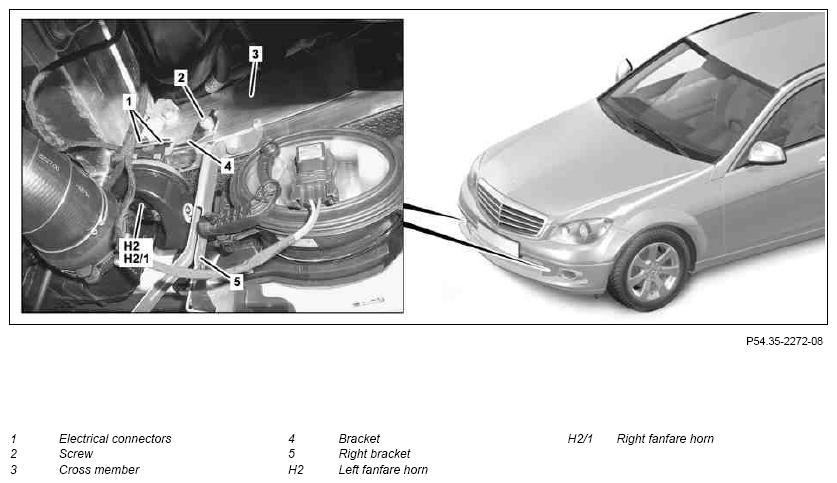

Shown on MODEL 204.0 on right horn (H2/1)
| Remove/install | |||
| 1 | Empty the washer fluid reservoir of the windshield washer system, then loosen and press to one side with lines connected | MODEL 204.0 (except 204.077), 204.2 (except 204.277) MODEL 204.3 (except 204.377) MODEL 204.9 When removing left fanfare horn (H2). |
|
| MODEL 204.0 (except 204.077), 204.2 (except 204.277), 204.3 (except 204.377) | AR82.35-P-6000CW | ||
| MODEL 204.9 | AR82.35-P-6000CY | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 2 | Lift vehicle on vehicle lift | ||
| 3 | Remove front fender liner in right front fender | MODEL 218 with ENGINE 157, 274, 651 as of model year 2015 MODEL 218 with ENGINE 278, 642 as of model year 2015 with CODE 228 (Auxiliary heater) When removing right fanfare horn (H2/1). |
|
| AR88.10-P-1300ELX | |||
| 4 | Loosen right fender liner in area of front bumper and pry out using assembly wedge | MODEL 204.0 (except 204.077), 204.2 (except 204.277) MODEL 204.3 (except 204.377) MODEL 204.9 When removing right fanfare horn (H2/1). |
|
| Figure | |||
| 5 | Remove front bumper | MODEL 204.9 with CODE 228 (Auxiliary heater) When removing right fanfare horn (H2/1). |
|
| AR88.20-P-2000CY | |||
| 6.1 | Remove front engine compartment paneling | MODEL 212 (except 212.077/277) with ENGINE 271, 272, 273, 274, 276, 278 MODEL 218 with ENGINE 157, 274, 276, 278 |
|
| AR61.20-P-1105EW | |||
| 6.2 | Remove bottom section of soundproofing at front | MODEL 212 (except 212.077/277) with ENGINE 642, 651 MODEL 218 with ENGINE 642, 651 |
|
| AR94.30-P-5300EW | |||
| 7 | Remove right bracket (5) | MODEL 218 with ENGINE 157, 274, 651 as of model year 2015 MODEL 218 with ENGINE 278, 642 as of model year 2015 with CODE 228 (Auxiliary heater) When removing right fanfare horn (H2/1). |
|
| 8 | Unscrew bolt (2) | ||
| 9 | Separate electrical connections (1) | ||
| 10 | Remove left fanfare horn (H2) or right fanfare horn (H2/1) | ||
| 11 | Install in the reverse order |
