Remove/install 360° camera control unit - AR54.30-P-3004EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014 with CODE 501 (360° camera)
MODEL 218 as of model year 2015 with CODE 501 (360° camera)
Shown on MODEL 212.1
Shown on MODEL 218.9
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and commission 360° camera control unit (N148) | When replacing 360° camera control unit (N148). | |
| AD00.00-P-2000-04A | |||
| 2.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 212 as of model year 2014 with CODE 501 (360° camera) without CODE 889 (KEYLESS-GO) MODEL 218.9 as of model year 2015 with CODE 501 (360° camera) without CODE 889 (KEYLESS-GO) |
|
| 2.2 | Switch off ignition and remove KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 212 as of model year 2014 with CODE 501 (360° camera) with CODE 889 (KEYLESS-GO) MODEL 218.9 as of model year 2015 with CODE 501 (360° camera) with CODE 889 (KEYLESS-GO) |
|
| 3.1 | Remove right luggage compartment lining (1) | MODEL 212.0/1 as of model year 2014 with CODE 501 (360° camera) MODEL 218.3 as of model year 2015 with CODE 501 (360° camera) |
|
| MODEL 212.0/1 as of model year 2014 with CODE 501 (360° camera) |
AR68.30-P-4600EW | ||
| MODEL 218.3 as of model year 2015 with CODE 501 (360° camera) |
AR68.30-P-4600EL | ||
| 3.2 | Remove paneling on right side in load compartment | MODEL 212.2 as of model year 2014 with CODE 501 (360° camera) |
|
| AR68.30-P-1180ES | |||

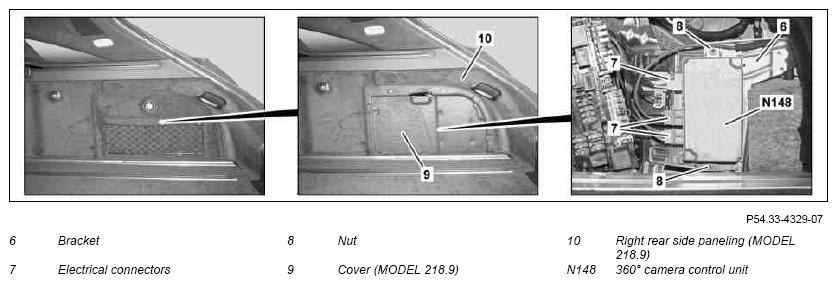

| 3.3 | Remove cover (9) from right rear side paneling (10) | MODEL 218.9 as of model year 2015 with CODE 501 (360° camera) |
|
| AR68.30-P-1180ELX | |||
| 4 | Remove retaining clips of soundproofing under the paneling at the right side in the load compartment and fold soundproofing to one side | MODEL 212.2 as of model year 2014 with CODE 501 (360° camera) |
|
| Fig 3 | |||
| 5 | Loosen nut (2) from top of bracket (4), but do not unscrew fully | MODEL 212.0/1 as of model year 2014 with CODE 501 (360° camera) with CODE 863 (Digital/analog TV tuner) MODEL 212.0/1 as of model year 2014 with CODE 501 (360° camera) with CODE 865 (TV tuner) |
|
| 6 | Unscrew nuts (3) from bottom of bracket (4) | MODEL 212.0/1 as of model year 2014 with CODE 501 (360° camera) with CODE 863 (Digital/analog TV tuner) MODEL 212.0/1 as of model year 2014 with CODE 501 (360° camera) with CODE 865 (TV tuner) |
|
| 7 | Remove bracket (4) with TV tuner (analog/digital) (A90/1) or with TV digital tuner (A90/3) and place to one side with attached electrical lines | MODEL 212.0/1 as of model year 2014 with CODE 501 (360° camera) with CODE 863 (Digital/analog TV tuner) MODEL 212.0/1 as of model year 2014 with CODE 501 (360° camera) with CODE 865 (TV tuner) |
|
| 8 | Unfasten bolts (5); do not remove completely | MODEL 212 as of model year 2014 with CODE 501 (360° camera) |
|
| 9 | Remove bracket (6) with 360° camera control unit (N148) downwards | MODEL 212 as of model year 2014 with CODE 501 (360° camera) Otherwise, lines or surrounding components may be damaged. |
|
| 10 | Remove nuts (8) and remove 360° camera control unit (N148) from bracket (6) | ||
| 11 | Detach electrical connections (7) and remove 360° camera control unit (N148) | ||
| 12 | Install in the reverse order |
