Remove/install auxiliary oil pump for automatic transmission - AR27.30-P-0651EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.9 in MODEL 172, 212, 218

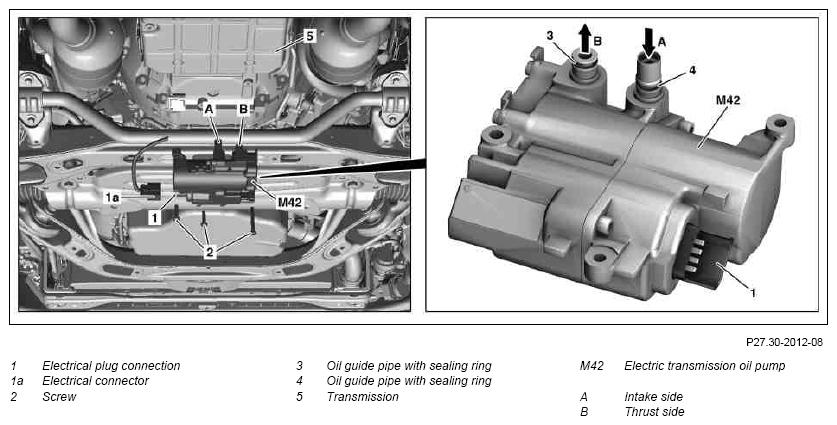

Fig 1: Auxiliary Oil Pump For Automatic Transmission Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
		Before starting the work the area surrounding the connecting points on the transmission (5) must be thoroughly cleaned. Even the smallest dirt particles in the hydraulic components can lead to malfunctions and a total failure of the transmission (5).
1.1	Remove bottom section of soundproofing	Vehicles with diesel engine
		Model 172	AR94.30-P-5300W
		Model 212, 218	AR94.30-P-5300EW
1.2	Remove engine compartment paneling	Vehicles with gasoline engine
		Model 172	AR61.20-P-1105W
		Model 212, 218	AR61.20-P-1105EW
2	Remove drain screw from transmission oil pan	Collect escaping ATF with drain pan. Note automatic transmission oil quantity. It is not necessary to pry off the overflow pipe from the base of the transmission oil pan. Drain pan
3	Detach electrical connector (1a) on electric transmission oil pump (M42)
4	Detach electrical wiring harness from transmission (5) and set aside
5	Remove screws (2) and detach electric transmission oil pump (M42)	When reinstalling the electric transmission oil pump (M42): ↓ Check the oil guide pipe with sealing ring (3, 4) on the intake and pressure side (A, B) and replace if necessary.
5			*BA27.55-P-1009-01D
6	Install in the reverse order
7	Fill transmission (5) with oil.	Vehicles without 4MATIC	AR27.00-P-0270W
7	Fill transmission (5) with oil.	Vehicles with 4MATIC	AR27.00-P-0270SYZ
	Checking
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the	Do not touch hot or rotating parts. engine as it is running Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes.	AS00.00-Z-0005-01A
8	Perform engine test run and check transmission (5) for function and leaks		AS00.00-Z-0005-01A

TRANSMISSION OIL COOLING SYSTEM

Number	Designation		Transmission 722.9
BA27.55-P-1009-01D	Bolt, transmission oil auxiliary pump to transmission housing	Nm	8
